Hydraulic Impact Hammer

Large Size (Max. Ram Weight 80000KG)

YC-21/YC-25/YC-30/YC-35/YC-40/Y-50/YC-60/YC-80

Piling hammer

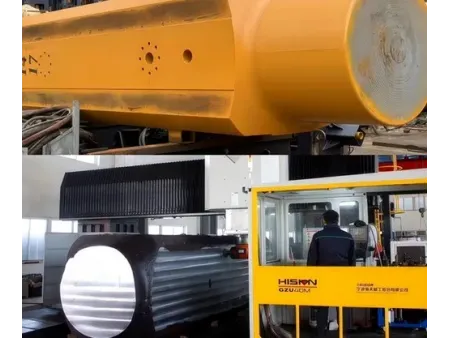

Our large size hydraulic impact hammers are powerful, expertly designed piling tools. With a robust thick-walled circular hammer shell, the impact hammers offer enhanced strength and self-weight. Made from high-strength alloy steel, these hammers support full-load piling. Weighing between 21000KG and 80000KG, they are compatible with large piles and can be customized to meet your specific needs. Engineered for large-scale projects, these impact hammers are capable of handling large-diameter piles, ensuring solid and stable foundations.

Customizable Options

Pile cap sizes can be tailored to your requirements, considering if the impact hammer will be mounted on a guide frame.

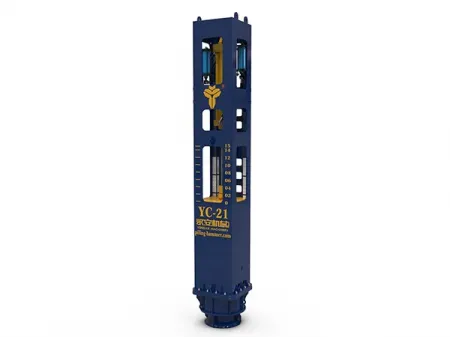

Model	YC-21
Unit	Metric
Impact Energy	357 kNm
Working Stroke	1700 mm
Impact Frequency	70/25 bpm
Ram Weight	21000 kg
Dimensions (L×W×H)	8700×1460×1610 mm
Weight	33500 kg
Recommended Power Pack	600P

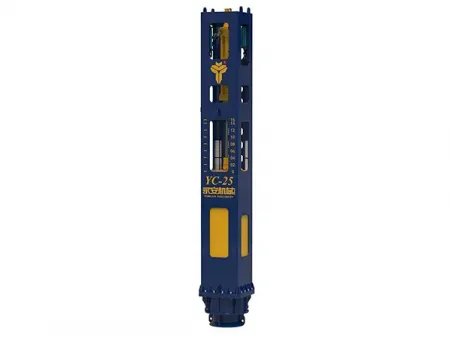

Model	YC-25
Unit	Metric
Impact Energy	425 kNm
Working Stroke	1700 mm
Impact Frequency	65/25 bpm
Ram Weight	25000 kg
Dimensions (L×W×H)	9100×1460×1610 mm
Weight	37000 kg
Recommended Power Pack	600P

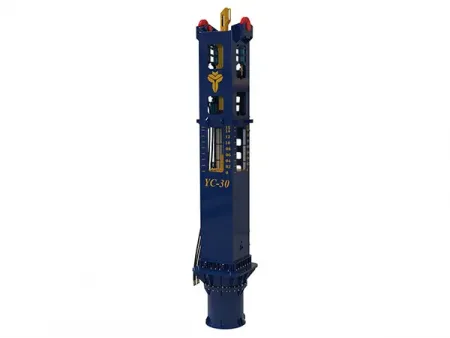

Model	YC-30
Unit	Metric
Impact Energy	510 kNm
Working Stroke	1700 mm
Impact Frequency	60/25 bpm
Ram Weight	30000 kg
Dimensions (L×W×H)	9300×1700×1720 mm
Weight	44500 kg
Recommended Power Pack	800P

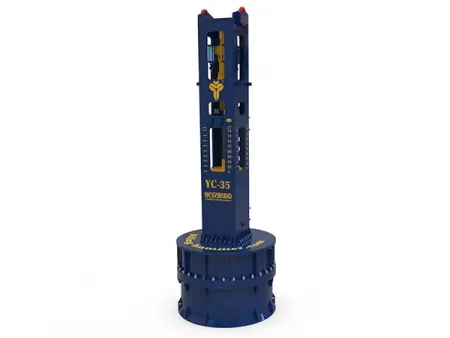

Model	YC-35
Unit	Metric
Impact Energy	595 kNm
Working Stroke	1700 mm
Impact Frequency	60/25 bpm
Ram Weight	35000 kg
Dimensions (L×W×H)	9300×1900×1920 mm
Weight	55000 kg
Recommended Power Pack	800P

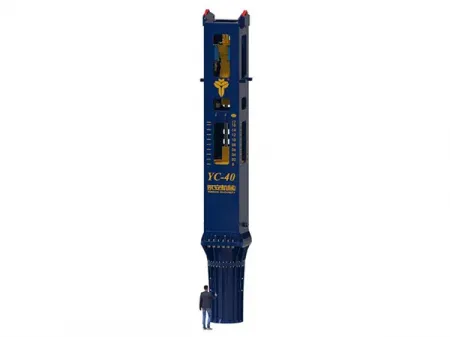

Model	YC-40
Unit	Metric
Impact Energy	680 kNm
Working Stroke	1700 mm
Impact Frequency	60/25 bpm
Ram Weight	40000 kg
Dimensions (L×W×H)	9500×1900×2050 mm
Weight	60000 kg
Recommended Power Pack	1000P

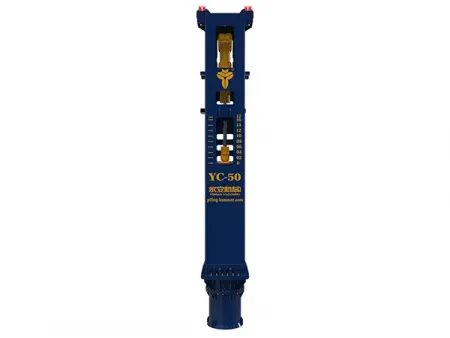

Model	YC-50
Unit	Metric
Impact Energy	850 kNm
Working Stroke	1700 mm
Impact Frequency	60/25 bpm
Ram Weight	50000 kg
Dimensions (L×W×H)	10100×1900×2050 mm
Weight	70000 kg
Recommended Power Pack	1200P

Model	YC-60
Unit	Metric
Impact Energy	1020 kNm
Working Stroke	1700 mm
Impact Frequency	60/24 bpm
Ram Weight	60000 kg
Dimensions (L×W×H)	11800×2730×2320 mm
Weight	96000 kg
Recommended Power Pack	1600P

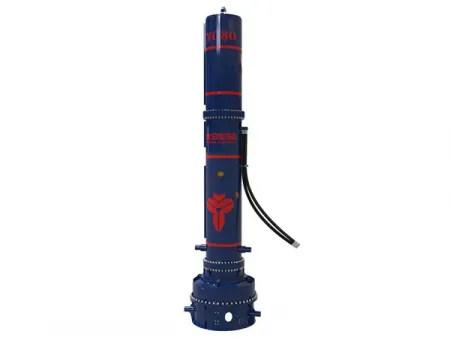

Model	YC-80
Unit	Metric
Impact Energy	1360 kNm
Working Stroke	1700 mm
Impact Frequency	60/23 bpm
Ram Weight	80000 kg
Dimensions (L×W×H)	14000×2850×2350 mm
Weight	130000 kg
Recommended Power Pack	2200P

Mounting Options

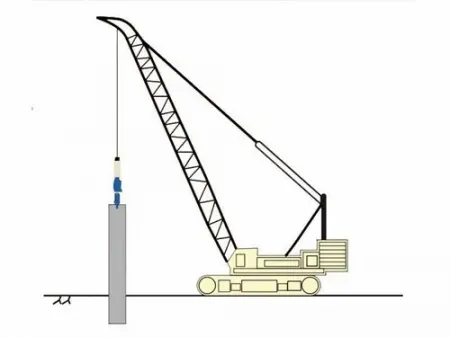

Crawler Crane

Floating Crane

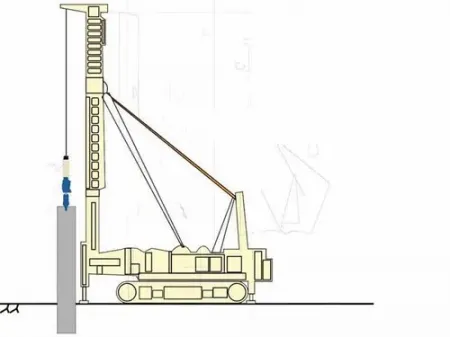

Crawler Rig Lead Supported

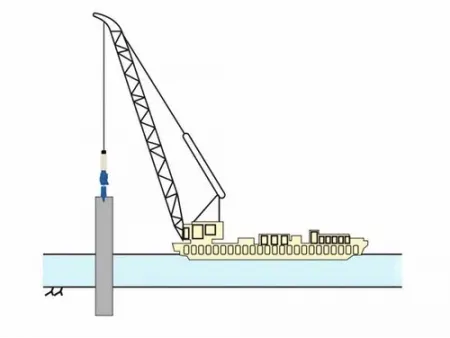

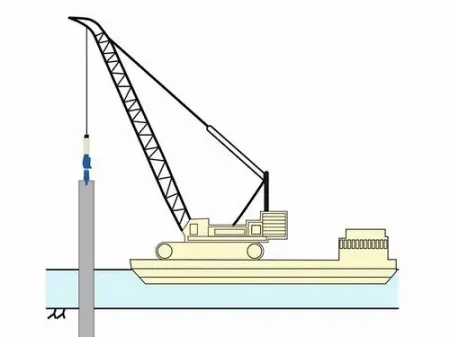

Crane-Fitted Barge

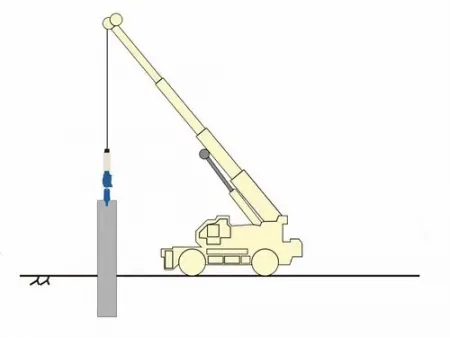

Rough Terrain Crane

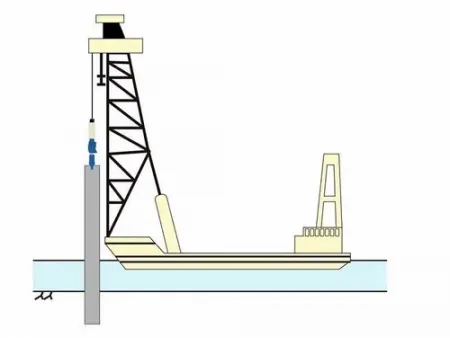

Piling Barge

Applications

Civil Infrastructure Construction
Sea Bridge Construction
Harbour Construction

Suitable Pile Types

Steel Tubular Piles
Concrete Piles
