Auto Loading And Unloading Mobile Drainage Cabin
Mobile Water Treatment System
Mobile Water Treatment System

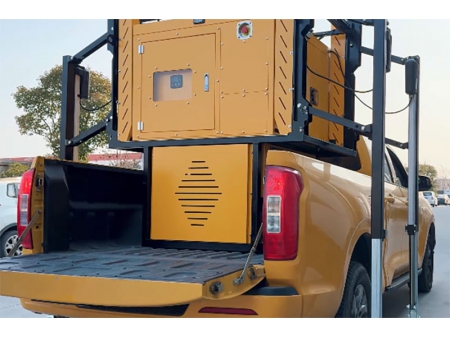

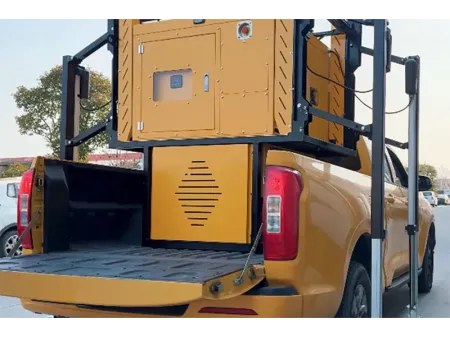

The automatic loading and unloading mobile drainage pump is a self-contained mobile drainage unit that doesn’t require a forklift or crane for transportation. It can be quickly assembled and disassembled, making it ideal for rapid deployment in emergency situations. The unit consists of a generator set, submersible pump, control box, caster wheels, frame, fuel tank, and fully automatic electric lifting system. This system enables fast response to disasters, quickly draining floodwater from affected areas, minimizing the impact of disasters. In addition, the unit provides power generation and lighting functions, offering essential support for the affected areas.
- Pump flow: 350m³/h to 500m³/h
- Pump head: 10m to 140m
- Generator power: 18kW to 50kW
- Options of generator: gasoline generator, diesel generator
- Compact and lightweight: The mobile drainage pump has a small size and light weight, making it easy to transport and deploy.
- Robust structure: The enclosure is made from high-quality galvanized steel plates with a minimum thickness of 2.0mm, each treated with sandblasting for rust and corrosion resistance, and coated with a 300°C high-temperature spray paint for added durability. The enclosure has sections for the pump, hose, and generator set, allowing easy access for observation, operation, and maintenance.
- Quick loading and unloading: The self-unloading design allows it to be quickly loaded and unloaded, making it compatible with pickup trucks or small delivery vehicles for fast deployment.
- Electric lifting system: The equipment is raised using an electric support leg assembly, making transportation and installation easier and faster.
- Fast installation and disassembly: The drainage pump is designed with automatic loading and unloading technology, enabling rapid setup and teardown, which significantly improves emergency response times.
- Efficient drainage capacity: Equipped with a high-efficiency pump, this unit quickly removes water from affected areas, reducing the impact of flooding.
- Multi-functional integration: Beyond drainage, the unit provides power generation and lighting capabilities, offering comprehensive emergency support for disaster-stricken areas.
- Highly mobile: The unit can quickly reach disaster sites, providing much-needed assistance.
- Intelligent operation: Some versions of the drainage pump come with an intelligent LCD control panel, allowing one-touch operation without the need for continuous supervision, and enabling remote control by a single operator.
- Adaptability to complex environments: The self-loading mobile drainage unit includes an automatic lifting feature, which allows it to easily adapt to challenging terrain and adjust the working height based on specific drainage needs.
- Excellent sealing performance: The fixed unit is well-sealed, providing environmental protection for the equipment.
The product is designed to efficiently drain floodwater with its high-capacity pump. In addition to its drainage capabilities, it also functions as an emergency water supply and power generator. This makes it widely applicable in situations such as flood relief, road drainage, emergency water supply for firefighting, flood control operations, reservoir safety, mountain drainage, and other scenarios.
