Pneumatic Angle Seat Valve
- Direct Acting, Double Acting
- Port Size: 1/2"–2"
- Fluid Temperature: -5°C to 180°C
- Operating Pressure: 0–1.6MPa
- Media: air, water, oil, gas, steam
SNAJ series is a sturdy and reliable pneumatic control valve designed for harsh industrial environments. It uses high-performance PTFE sealing and a stainless steel valve body, providing excellent corrosion resistance and durable sealing for continuous leak-free operation. This valve offers two actuation modes: double-acting and spring-return (single-acting), ensuring fast response and low energy consumption. The modular actuator at the top can be equipped with a position feedback sensor for real-time monitoring, allowing easy maintenance without disassembling the valve. With these features, this valve delivers adaptability and dependable operation under continuous operations.
- Available in 304/316 stainless steel, ensuring strong corrosion resistance for humid or chemical environments
- PTFE sealing and coated piston design provide durability, wide media compatibility, and support two-directional flow
- Optional position sensor at the top of the actuator for real-time monitoring without increasing overall size
- 45° flow channel structure with a self-adjusting sealing cap design buffers pressure fluctuations and improves sealing reliability
- Externally piloted pneumatic control to ensure long service life and minimal maintenance
- Angle seat valve body structure achieves high flow, compact size, and quick response
- Standardized connectors allow actuator customization with various port size and pressure levels

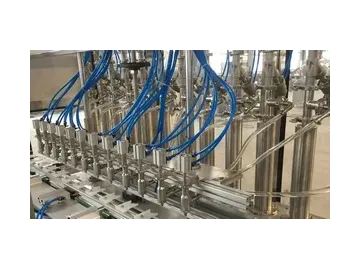

- Beverange Filler Machinery
The valve controls the on/off flow of beverage liquids. The stainless steel body ensures the fluid purity and hygiene.

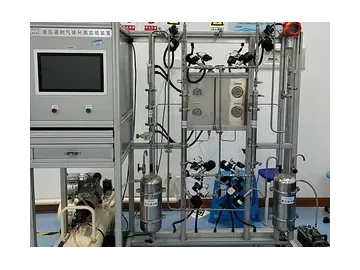

- Gas Detection Equipment
The angle seat valve is ideal for gas detection systems because it controls gas flow without reacting with valve materials.
- Water Treatment Equipment
Built completely with 316 stainless steel, the angle seat valve is completely non-reactive with gases or liquid media, ensuring durability and reliability.
We recommended the standard pneumatic valve with aluminum-alloy body. It has a lifespan of 500,000 cycles and offers excellent cost performance.
Yes. A special corrosion-resistant 316 stainless steel version is available and suitable for acidic and alkaline environments.
It is recommended to choose pneumatic valves because they use air control without electrical components, providing safer operation in explosion-proof applications.
The highest response speed of the pneumatic valve is ≤50 ms, ideal for packaging machinery and other high-frequency operations.
