Color-Coated Steel Wall Panels
Request a Quote
YX25-205-1025
25mm depth×1025mm width G-Rib wall panel suitable for both roofing and siding applications
- Effective cover width: 1025mm
- Overall width of sheet: 1250mm
- Thickness: 0.4mm-1.0mm
- Length: Customizable
- Material: Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
Color-coated steel wall panels use a G-Rib profile that works for both roofing and siding applications. With a rib depth of 25 mm and a cover width of 1025 mm, they combine strength, weather resistance, and a clean finish. The consistent rib design improves stability while maintaining a uniform look, making them suitable for agricultural, residential, and commercial buildings.

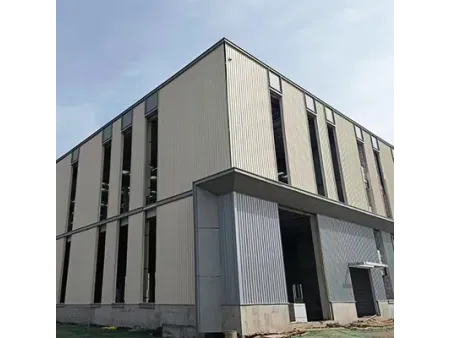

Applications
Color-coated steel wall panels are suitable for industrial buildings, warehouses, agricultural facilities, commercial complexes, and even residential projects where a durable and economical wall or roof covering is required.
Specifications
| Model | YX25-205-1025 |
| Effective cover width | 1025mm |
| Overall width of sheet | 1250mm |
| Thickness | 0.4mm-1.0mm |
| Length | Customizable |
| Type of cladding | Exposed fastener wall panel |
| Installation | Horizontal installation, vertical installation |
| Material | Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet |
| Metal sheet suppliers | Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc. |
| Color | Standard color custom color |
| Surface coating | PE/HDP/PVDF, etc. |
| Lifespan | At least 50 years |
| Applications | Architectural cladding for walls and roofs |
| Mounting accessories included | A full range of shear studs, self-tapping screws, clamps, etc. |
| Remarks | 1. Professional installation guidance is available to ensure proper assembly 2. Other sizes or customized designs can be provided upon request |

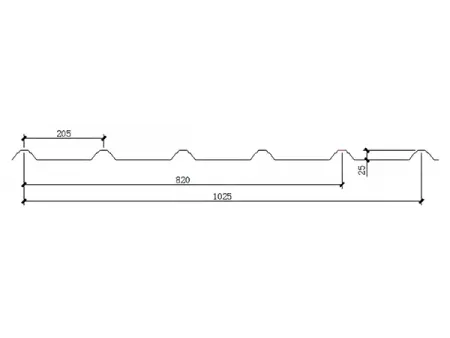

Cross Section Properties
| Effective cover width (mm) | 1025 | ||
| Overall width of sheet (mm) | 1250 | ||
| Thickness (mm) | 0.4 | 0.5 | 0.6 |
| Moment of inertia (cm⁴/m) | 15.20 | 18.75 | 22.80 |
| Moment of resistance (cm³/m) | 8.15 | 10.20 | 12.45 |
Features
- The G-Rib profile ensures reliable performance while maintaining a clean and balanced architectural look.
- Panels can be used on both walls and roofs, so they are adaptable for multiple applications.
- Manufactured from high-quality coated steel, they provide resistance to corrosion, UV rays, and harsh weather conditions.
- Lightweight design simplifies handling and installation, reducing time and labor costs.
- The uniform rib spacing enhances drainage and prevents water accumulation on roofs.
