Optical Module
General Information
  • Supports 425Gb/s aggregation
  • 8x50GPAM4 VCSEL/PIN optoelectronic detectors
  • OM3 multimode fiber transmission up to 70 meters, OM4 multimode fiber transmission up to 100 meters
  • Hot-pluggable QSFP-DD form factor
  • Compliant with QSFP-DD standards
  • Complies with 1M laser safety standards
  • Meets ESD requirements, withstands 8KV direct contact voltage
  • Compliant with RoHS-10 standards and lead-free
  • Compliant with SFF-8636 management interface standard
  • Compliant with SFF-8679 general electrical standard
  • Single 3.3V power supply
  • Low power consumption, maximum 12W
  • Full metal casing for excellent EMI performance
  • Operating temperature range: 0°C to 70°C

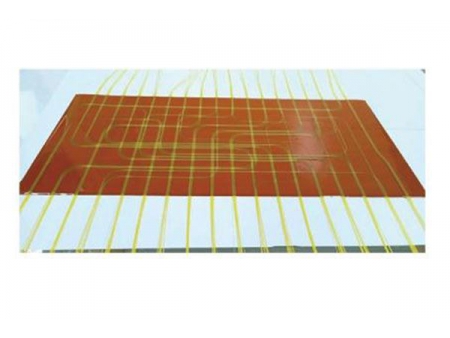

Optical Backplane
General Information
  • Insertion loss: <1.5dB
  • Return loss: 40dB (single-mode), 20dB (multimode)
  • Operating temperature: -55°C to 85°C
  • Vibration Resistance: Random vibration per GJB1217A-2009 Test Condition V, Letter E (power spectral density of 0.2G/Hz, total RMS acceleration value of 16.4G)
  • Shock Resistance: GJB1217A-2009 Test Condition C (peak acceleration of 980m/s, duration of 6ms)

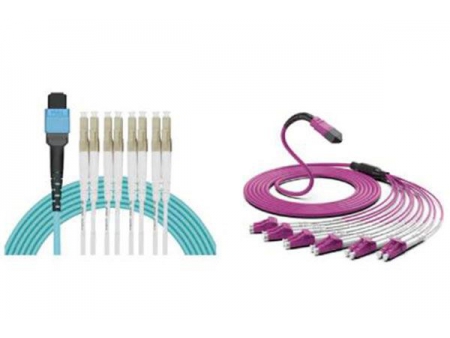

MPO/MTP Fiber Optic Jumpers (Fiber Patch Cords)

The MPO/MTP breakout patch cord generally consists of four structures: main cable, sub cable, fan-out and connector. The main cable adopts multi-core optical cable, which is convenient for wiring arrangement and difficult to entangle, lt is an ideal optical fiber distribution product in high density environment; SPEED LINKS can provide all kinds of MPO/MTP breakout patch cord products. The transmission mode, optical cable type and connector type can be arbitrarily matched. It has the advantages of stable transmission, high reliability and customization. lt is widely used in optical network scenarios such as Backbone Network, ODF and Data Center etc.

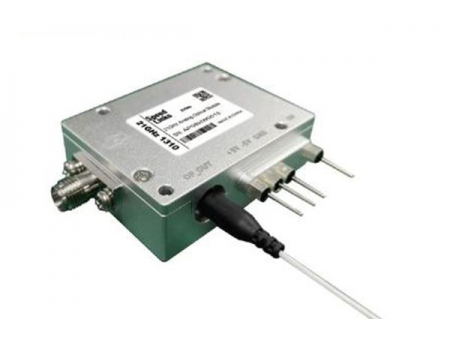

Optical Transceiver
General Information
  • Low Loss
  • Small size
  • Flat frequency response
  • High dynamic range
  • Excellent EMI/EMC design
Applications
  • Delay line
  • Antenna remoting
  • Secure communication
  • OFDM fiber transmission
  • Distributed antenna system
