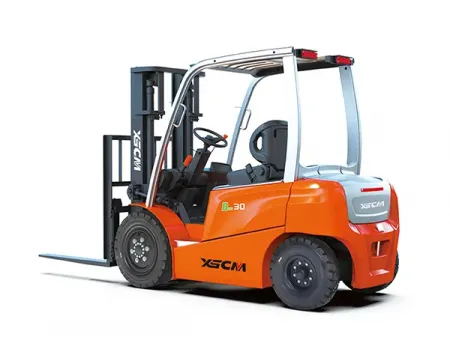

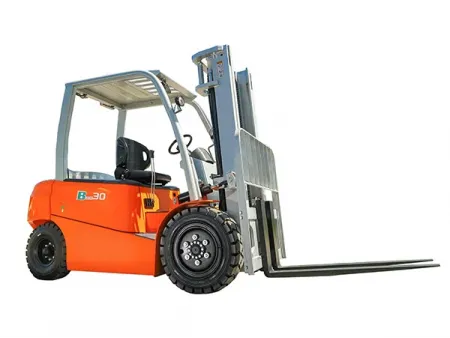

B20/30 Electric Forklift
Request a Quote
Lithium battery forklift truck with rated load capacity options of 2000kg and 3000kg
- Rated load capacity
2000-3000kg - Load center distance
500mm - Driving mode
Seated - Overall length (with forks)
3290-3757mm
Specifications
| Model | | |
| Power type | Lithium battery | Lithium battery |
| Rated load capacity | 2000kg | 3000kg |
| Load center distance | 500mm | 500mm |
| Driving mode | Seated | Seated |
| Overall length (with forks) | 3290mm | 3757mm |
| Overall length (without forks) | 2210mm | 2682mm |
| Overall width | 1100mm | 1232mm |
| Mast lowered height | 2010mm | 2130mm |
| Overhead guard height | 2000mm | 2070mm |
| Max. working height | 4110mm | 4183mm |
| Wheelbase | 1520mm | 1780mm |
| Front overhang | 370mm | 455mm |
| Rear overhang | 380mm | 464mm |
| Front wheel track width | 904mm | 1005mm |
| Rear wheel track width | 958mm | 988mm |
| Min. ground clearance | 110mm | 110mm |
| Standard lifting height | 3000mm | 3000mm |
| Fork adjustment range | 260-1100mm | 260-1100mm |
| Min. turning radius | 2100mm | 2450mm |
| Mast tilt angle (front/rear) | 5°/10° | 6°/12° |
| Max. lifting speed (no load) | 325mm/s | 380mm/s |
| Max. lifting speed (full load) | 250mm/s | 300mm/s |
| Max. travel speed (no load) | 15km/h | 14km/h |
| Max. travel speed (full load) | 14km/h | 14km/h |
| Max. gradeability (full load) | 15% | 15% |
| Total machine weight | 2820kg | 3140kg |
| Number of wheels Drive wheels/steering wheels | 2/2 | 2/2 |
| Tire type (front/rear) | Pneumatic tire/pneumatic tire | Pneumatic tire/pneumatic tire |
| Tire size (front) | 6.50-10 | 28×9-15 |
| Tire size (rear) | 5.00-8 | 6.50-10 |
| Brake system/service brake | Foot brake | Hydraulic brake |
| Parking brake | Hand brake | Manual brake |
| Battery voltage/capacity | 80V 105Ah | 80V 105Ah |
| Drive motor power | 8kW | 13.1kW |
| Hydraulic pump motor power | 14kW | 16.5kW |
Features
- Delivers zero-emission operation, completely eliminating exhaust pollution. Ideal for indoor warehouses, food processing facilities, and environments with strict hygiene or environmental requirements.
- The electric drive system ensures ultra-low noise, allowing smooth and quiet operation even in noise-sensitive areas such as residential zones, schools, or indoor logistics centers.
- Simplified electric powertrain design reduces maintenance needs by eliminating engine and gearbox components, cutting material and labor costs while minimizing downtime.
- Adjustable lifting height provides flexibility for various loading, unloading, and stacking applications from low-clearance areas to high-shelf storage, ensuring efficient and safe handling in all conditions.
