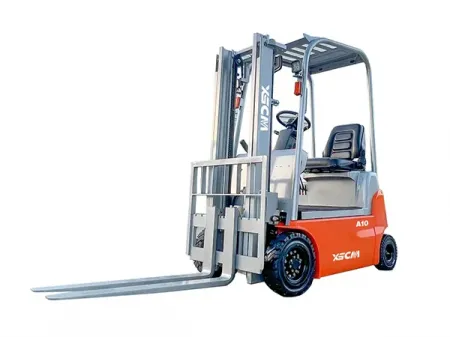

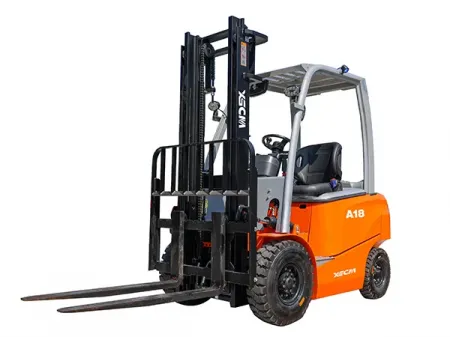

A05/10/18 Electric Forklift
Request a Quote
Lithium battery forklift truck with rated load capacity options of 500kg, 1000kg and 1800kg
- Rated load capacity
500-1800kg - Load center distance
400-500mm - Driving mode
Seated - Overall length (with forks)
2230-3100mm
Specifications
| Model | | | |
| Power type | Lithium battery | Lithium battery | Lithium battery |
| Rated load capacity | 500kg | 1000kg | 1800kg |
| Load center distance | 400mm | 400mm | 500mm |
| Driving mode | Seated | Seated | Seated |
| Overall length (with forks) | 2230mm | 2740mm | 3100mm |
| Overall length (without forks) | 1935mm | 1640mm | 2100mm |
| Overall width | 887mm | 910mm | 1100mm |
| Mast lowered height | 1820mm | 1765mm | 2060mm |
| Overhead guard height | 1820mm | 1925mm | 2010mm |
| Max. working height | 3188mm | 3403mm | 4050mm |
| Wheelbase | 970mm | 1135mm | 1315mm |
| Front overhang | 278mm | 285mm | 393mm |
| Rear overhang | 174mm | 235mm | 380mm |
| Front wheel track width | 784mm | 806mm | 960mm |
| Rear wheel track width | 250mm | 780mm | 955mm |
| Min. ground clearance | 80mm | 80mm | 120mm |
| Min. turning radius | 1285mm | 1760mm | 1800mm |
| Standard lifting height | 2500mm | 2800mm | 3000mm |
| Fork adjustment range | 152-782mm | 160-782mm | 160-1100mm |
| Mast tilt angle (front/rear) | 5°/6° | 5°/6° | 6°/12° |
| Max. lifting speed (no load) | 300mm/s | 320mm/s | 430mm/s |
| Max. lifting speed (full load) | 250mm/s | 250mm/s | 360mm/s |
| Max. travel speed (no load) | 11km/h | 12km/h | 15km/h |
| Max. travel speed (full load) | 10km/h | 11km/h | 14km/h |
| Max. gradeability (full load) | 15% | 15% | 15% |
| Total machine weight | 1220kg | 1800kg | 2910kg |
| Number of wheels | 2/2 | 2/2 | 2/2 |
| Tire type (front/rear) | Solid tire/solid tire | Solid tire/solid tire | Pneumatic tire/pneumatic tire |
| Tire size (front) | 4.00-8 | 5.00-8 | 6.50-10 |
| Tire size (rear) | 3.50-5 | 15×4 1/2-8 | 5.00-8 |
| Service brake | Hydraulic brake | Hydraulic brake | Foot brake |
| Parking brake | Manual brake | Manual brake | Manual brake |
| Drive motor power | 2kW | 3kW | 13kW |
| Hydraulic pump motor power | 2kW | 3kW | 13kW |
Features
- The electric forklift features a low center of gravity for enhanced stability. Equipped with an onboard charger, it allows for convenient charging anytime.
- Lithium-powered with no tailpipe emissions, ideal for clean industries like food, pharma, and indoor logistics.
- Quick charge in 2-3 hours; runtime up to 6-10 hours. Supports opportunity charging for high-efficiency operation.
- Small turning radius (as low as 1.35 m), perfect for narrow aisles, elevators, and container operations.
- Stepless speed control, electric steering, and electromagnetic braking provide smooth and safe handling.
- Maintenance-free LiFePO₄ battery, no acid or water refill needed, lifespan over 3000 cycles, lower long-term cost than lead-acid forklifts.
- Options & Customization
Mast Types: 2-stage/3-stage full free
Tires: Solid or pneumatic
Operation Type: Seated/Standing/Walk-behind
Optional Accessories
Roll clamp, lifting arm, carton clamp, rotating flat clamp, string rod, pusher, load stabilizer, weighing system, bucket, multi-purpose bucket clamp, side fork, hook, soft clamp, rotating fork, extended fork, oil drum clamp, fork extension sleeve, scrap fork, tilting fork, load ejector, etc.
