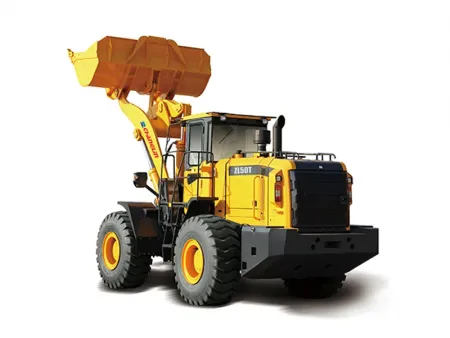

ZL50T Wheel Loader
- Length (with bucket on ground) 8015 mm
- Operating weight 16200 kg
- Rated bucket capacity 3.1 m³
- Rated output 162 kW
Built with a 3100 mm wheelbase, this loader is engineered for energy efficiency and performs exceptionally well when handling loose materials in high-volume operations.
The articulated frame incorporates tapered roller bearings for added durability and reliability, especially under continuous heavy-duty use.
Its hydraulic system features dual-pump converging flow along with a dedicated cooling circuit, improving heat dissipation and maintaining the oil temperature below 85 °C.
The T-series cab design includes large-access panels at both the front and rear, a fully sealed structure, and improved sound insulation, reducing interior noise levels to just 70 dB.
Maintenance is simplified through a user-friendly layout that brings relays, fuse boxes, grease fittings, and pressure taps together for quicker inspections and servicing.
Powered by the Weichai WP10G220 electronic control engine, it delivers 162 kW of rated power and up to 980 N·m of torque, making it a strong performer in heavy-duty applications.
Overall Dimensions
- Length (with bucket on ground) 8015mm
- Width (to outside of wheels) 2800mm
- Bucket width 2928mm
- Height (to the top of the cab) 3450mm
- Wheel base 3100mm
- Min. ground clearance 450mm
Performance
- Rated load 5000kg
- Operating weight 16200kg
- Rated bucket capacity 3.1m³, (optional 2.2-4.5m³)
- Max. dump clearance 3136mm
- Dump reach 1121mm
- Min. turning radius (wheel) 5970mm
Diesel Engine
- Model WeiChai WD10G220
- Type Electronic fuel injection Direct injection
- Emission level Ⅲ Ⅱ
- Max. torque 980N.m 900N.m@1400r/min
- Model WeiChai WD10G220
- Rated output 162kW
- Displacement 9.726L
- Rated speed 2000r/min
