Dust Collection & Control Equipment for
Fertilizer Plant

A cyclone separator is specifically designed for the purification of industrial gases containing dust. In the fertilizer industry, it efficiently separates dust particles (such as cement powder, mineral dust, or metal fumes) from exhaust gas. It is particularly effective for the preliminary purification of high-temperature (up to 400℃), high-humidity, or corrosive gases, helping to reduce dust emissions and protect both the environment and workplace safety.

  • Centrifugal separation

    It uses centrifugal force to separate dust, with a particularly high capture efficiency for larger particles ( > 5 microns), meeting the primary purification needs of most industrial settings.

  • Versatile use

    Can handle complex conditions like metallurgical furnace gas and mining dust.

  • Waste reduction

    Separated dust can be recycled, which helps to reduce resource waste.

Specifications
Model Ø800 Ø1000 Ø1200 Ø1400 Ø1600 Ø1800 Ø2000 Ø2200 Ø2400
Handling Air Volume (m³/h) 3000-5000 5000-8000 9000-12000 13000-15000 15000-20000 20000-26000 28000-32000 32000-38000 38000-46000
Inlet Dust Concentration (g/Nm³) ≤1000
Dust Removal Rate (%) 80-95 70-95
Flow Resistance (Pa) 1000-1200 800-1200
Height (m) 2-3.2 2.5-4 3-4.8 3.5-5.6 4-6.4 4.5-7.2 5-8 5.5-8.8 6-9.6

The standard shell material is Q235 steel, and it can also be customized to 304 stainless steel.

Dust collection is typically managed by a rubber discharge valve or a counterweight discharge valve.

On-Site Cases

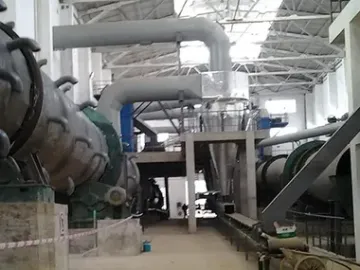

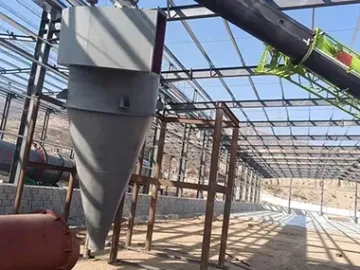

Guangxi Fengtang Liucheng Ecological Fertilizer Co., Ltd., a 100,000-ton compound fertilizer production line equipped with our Ø1800 cyclone separator.
Hubei Ruichenxiang Ecological Fertilizer Co., Ltd., a 200,000-ton compound fertilizer production line equipped with our Ø1800 cyclone separator.
Vinh-City, Vietnam, a 200,000-ton compound fertilizer production line equipped with our Ø2000 cyclone separator.
