COMPRESSED AIR TREATMENT Air compressor water separator for removing water from compressed air before entering the compressed air dryer
The cyclone water separator is an essential component for removing water from compressed air before it enters the compressed air dryer. By installing the separator upstream of filtration and drying equipment, up to 99% of liquid water can be effectively eliminated, enhancing the performance and efficiency of downstream purification systems.
The air compressor water separator can be flexibly installed at multiple locations within the compressed air system, after the air compressor, before the aftercooler, or after the air receiver tank. This versatility ensures maximum water removal tailored to different system configurations, supporting reliable operation and extended equipment life.
General Information
"*" stands for filtration grade
- Grade C filtration: solid 3μm, oil content 3ppm
- Grade T filtration: solid 1μm, oil content 1ppm
- Grade A filtration: solid 0.01μm, oil content 0.01ppm
- Grade X filtration: solid 0.01μm, oil content 0.003ppm
- Grade H (activated carbon) filtration: solid 0.01μm, oil content 0.001ppm
- Grade F high efficiency dust removal: 0.1μm
- Grade FF super high efficiency dust removal: 0.01μm
- Material: carbon steel
- Working medium: compressed air
- Working temperature: ≤80℃
- Working pressure: 2.0-8.0MPa
- Filtration accuracy: 3-0.01μm

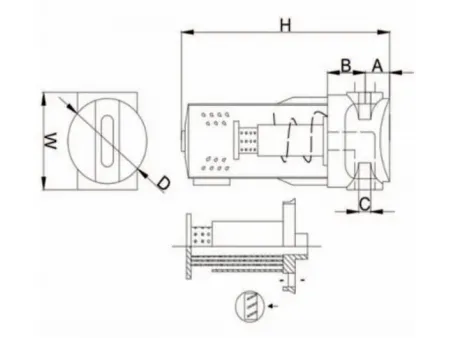

Technical Data of Threaded Cyclone Separator
| Filter model | Air flow rate (m³/min) | Connection size | H (mm) | W (mm) | A (mm) | B (mm) |
| | 0.6-2 | 3/4″ | 235 | 95 | 32 | 51 |
| | 3.0-5.0 | 1″ | 276 | 95 | 32 | 51 |
| | 6.0-8.0 | 1-1/2″ | 302 | 125 | 38 | 65 |
| | 9.0-15.0 | 1-1/2″ | 420 | 125 | 38 | 65 |
| | 16.0-30.0 | 2″ | 545 | 170 | 46 | 82 |
| | 30-40 | 2-1/2″ | 640 | 205 | 60 | 100 |
| | 40-50 | 3″ | 792 | 205 | 60 | 100 |

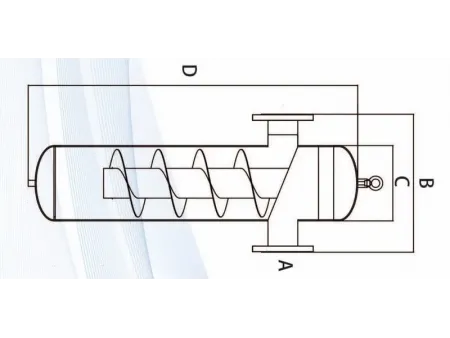

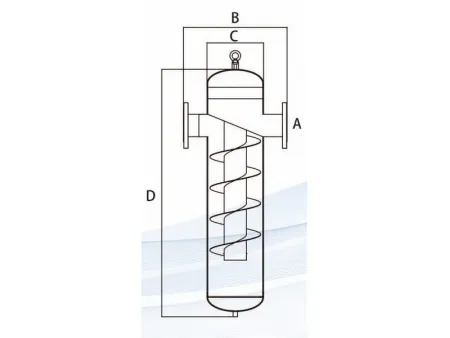

Technical Data of Flanged Cyclone Separator
| Filter model | Air flow rate (m³/min) | Connection size A | Barrel diameter B (mm) | Width W (mm) | Length H (mm) |
| | 30-40 | DN80 | 219 | 465 | 1010 |
| | 40-60 | DN100 | 219 | 465 | 1160 |
| | 60-80 | DN125 | 273 | 500 | 1195 |
| | 80-100 | DN150 | 325 | 565 | 1290 |
| | 100-180 | DN200 | 426 | 726 | 1533 |
| | 180-260 | DN250 | 500 | 860 | 1469 |
| | 260-350 | DN300 | 650 | 950 | 1728 |
