Automatic Two-Sided Terminal Crimping and Sleeve Insertion Machine Manufacturer

Automatic Two-Sided Terminal Crimping and Sleeve Insertion Machine

Request a Quote

View All: http://wirecrimping-en.com/6-1-sided-crimping-sleeve-insertion.html

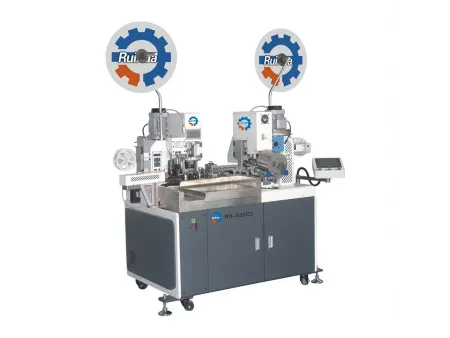

This model of wire terminating machine integrate two-sided terminal crimping with sleeve insertion, handling tasks such as crimping straight terminals (187/250) or inserting and positioning insulation sleeves. Its flexibility extends to configurations that include partial stripping, single-end crimping, and sleeve insertion, making it a practical choice for diverse cable assembly applications.

Crimping Capacity

2,300 wires per hour

Technical Data

General	Model
	Dimensions (L×W×H)	1450×1800×1600mm
	Weight	Approx. 580kg
	Power Supply	AC220V 50Hz
	Rated Current	15A
	Power	4kW
	Air Pressure	0.4-0.6Mpa (the air must be filtered and dried)
	Space Requirement	2×1.5m
	Crimping Force	2T
Functions	Crimping Capacity	2300 wires/hr (depending on wire and sleeve)
	Wire Processing	Terminal crimping and sleeve insertion by using ball screw mechanism (shifting between side A and side B)

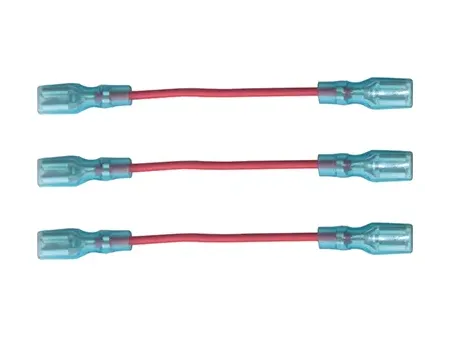

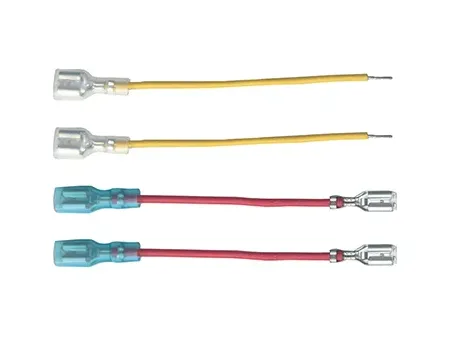

		Two-sided half stripping, Two-sided crimping, Two-sided crimping and sleeve insertion, One-sided crimping one-sided half stripping, One-sided crimping one-sided sleeve insertion
		Split type blade cutting and stripping, Twisting by motor rotation
	Control System	PLC control, servo motor
	Operation Control	Wire feeding, cutting and stripping are controlled via touch screen, with full servo control
	Detection Devices	Crimp test, wire shortage detection, air pressure test, paper winding inspection
	Auxiliary Equipment	Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank
Optional	Pressure Measuring Device	Used to measure terminal crimping pressure (qualified and non-qualified products are placed separately)
Application Range	Cutting Length	30-9999mm
	Stripping Length	Front: 0-10mm, Rear: 0-15mm
	Wire & Cable Type	Electric wire (AWG26#-AWG16#)

Features

Designed with a modular construction that allows fast and easy accessory changes to adapt to different product specifications, saving both machine costs and factory space.
An integrated error monitoring system displays real-time alerts on a touch screen, simplifying fault detection and ensuring efficient troubleshooting.
