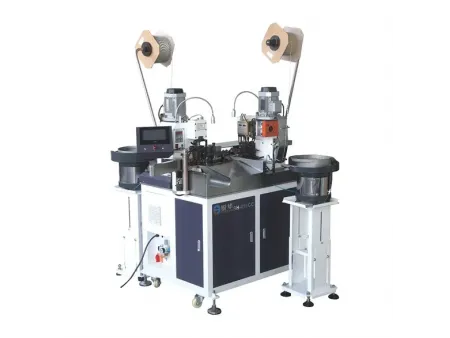

Automatic Two-Sided Terminal Crimping and Seal Insertion Machine
Engineered to handle a variety of tasks, this wire terminating equipment performs wire cutting, stripping, double-sided crimping, and seal insertion efficiently. It supports diverse cable types such as 18AWG-28AWG electronic wires, including PVC, silicone, Teflon, and halogen-free wires. Thanks to its versatile design, our 2-sided crimping & seal insertion machine simplifies production by enabling efficient transitions between single and double-sided operations, crimping, and seal insertion, making it a reliable choice for complex wire processing needs.
- 1,900 wires per hour at 100mm length
| General | Model | |
|---|---|---|
| Dimensions (L×W×H) | 1700×920×1580mm | |
| Weight | 600kg | |
| Power Supply | AC220V 50Hz | |
| Rated Current | 20A | |
| Power | 4kW | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | |
| Space Requirement | 1×2.2m | |
| Crimping Force | 2T | |
| Functions | Crimping Capacity | 1900 wires/hr at 100mm length (depending on the wire length) |
| Wire Processing | Wire cutting, One-sided stripping, Two-sided stripping, One-sided crimping, Two-sided crimping, One-sided crimping one-sided seal insertion, Two-sided crimping two-sided seal insertion | |
| Control System | LCD display, single-chip microcontroller | |
| Detection Devices | Crimp test, wire shortage detection, air pressure test, paper winding inspection | |
| Auxiliary Equipment | Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank | |
| Operation Control | Wire feeding, cutting, stripping and movement are controlled via touch screen, with servo control | |
| Wire Seal Insertion | Wire seal insertion unit | |
| Transmission | Ball screw, guide rail and timing belt | |
| Optional | Pressure Measuring Device | Used to measure terminal crimping pressure |
| Application Range | Cutting Length | 50-9999mm (standard: leaving glue space 17mm, special: shorten to 12mm) |
| Stripping Length | Front: 0.1-10mm, Rear: 0.1-20mm | |
| Wire & Cable Type | Electric wire, high temperature cable, halogen-free cable, Teflon insulated cable (AWG18#-AWG28#) |
-

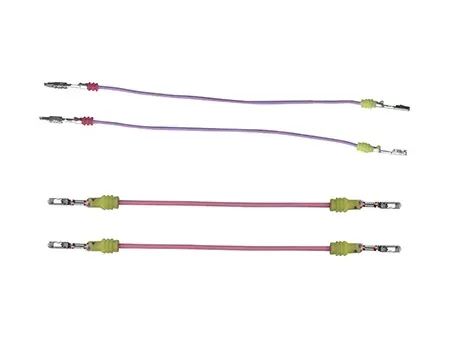

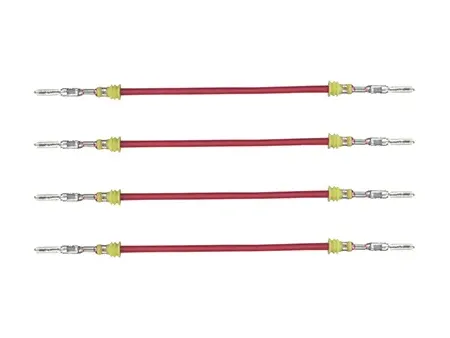

Equipped with a guided feeding wheel and sliding screw rail mechanism to ensure accurate stripping, terminal crimping, and seal insertion for both ends of the wire, meeting diverse production requirements.
-
Fitted with a three-blade horizontal system that operates independently for front and back wire processing, reducing tension-related issues. The feeding tube allows direct wire feed through the cutting blade, ensuring seamless transitions to the stripping phase.
-
Includes an integrated error monitoring system with real-time alerts displayed on the touch screen, simplifying maintenance and troubleshooting.
