COLO-2152

Features

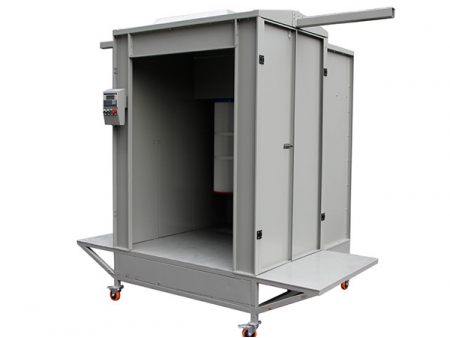

  • COLO-S-2152 powder coating booth features multi-purpose with the design of two side doors.

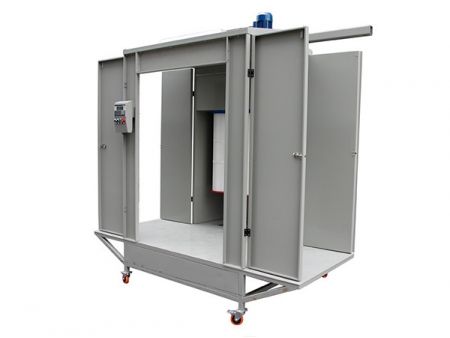

  • It becomes a pass through powder spray booth, which suits for processing long shaped objects when opening the side doors.
  • Closing side doors during spraying small objects ensures a cleaner work environment and reduces powder waste.
  • Made of powder coated steel with great corrosion resistance and durability for long lifespan.
  • High-precision filter recovery system enhances powder recovery up to 98%.
Specifications
Model COLO-S-2152
Operating dimensions 1400 width x 1000 depth x 1800 height mm
Overall dimensions 2500 width x 1500 depth x 2300 height mm
Weight 750 kg
Power supply Electric
Nominal power 3.5 kW
Voltage 380V/220V
Frequency 50-60Hz
Filters Polyester
Filter quantity 3pcs (D325*H900 mm)
Hang type filter Easy for change
Filter cleaning system Pneumatic
Air consumption 10200 m3/h
Details

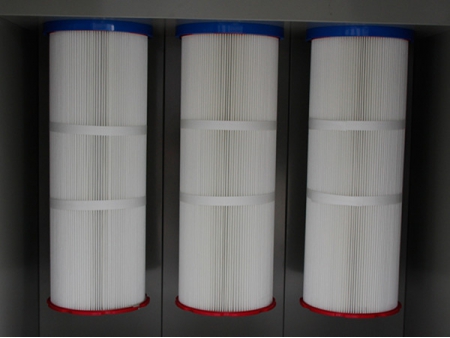

Cartridge Filters

  • Quick-release type cartridge filters can be manually removed and replaced without special tools, meeting the requirement of frequent color change.
  • 3 pcs 100% polyester filters with exact porosity allows to fully separate powders from airflow, recirculates clean and filtered air into the booth.

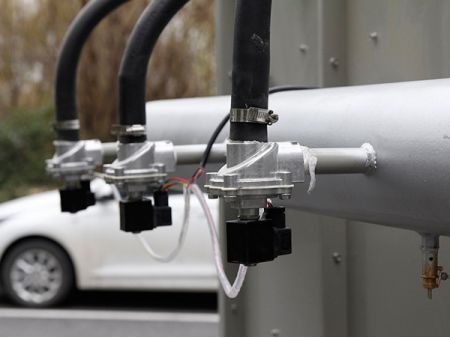

Filter Cleaning System

  • Pulse-jetting device regularly removes the powder that captured by filters to maintain peak performance.
  • The self-cleaning enables used powder to be intermittently discharged into a recovery hopper beneath the filter stage.

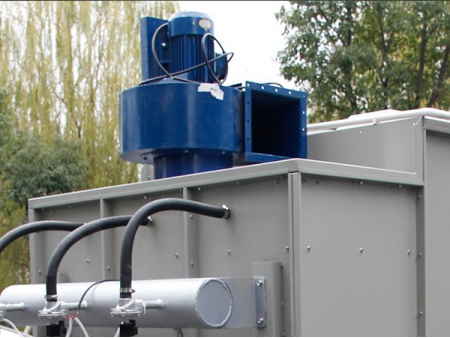

Fan

  • The air in the workshop is drawn into the spray booth through the powerful fan, which drags the powder paint from the overspray towards filters for complete capture.
  • Low-noise fan with powerful performance supplies optimum airflow and reduces air consumption.

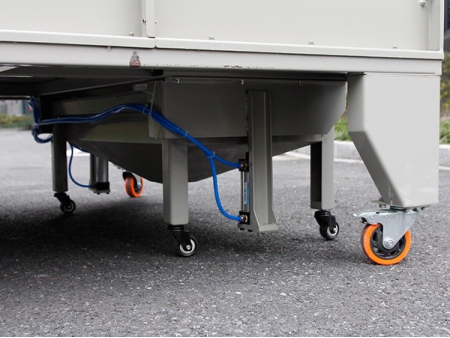

Removable Powder Collector

  • After filter cleaning, the discharged powders will be collected into a hopper beneath the unit, which can be taken away for fully emptying.
  • The removable powder collector helps operators to recycle powder more conveniently.

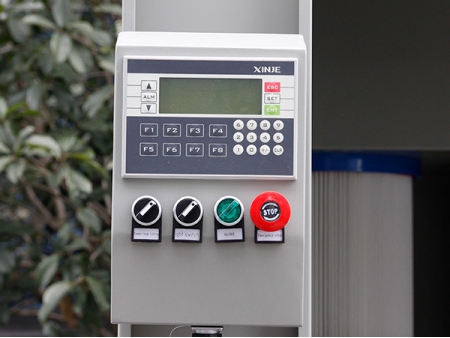

PLC Controller

  • PLC controller offers easier operation to set or adjust parameters in a highly precise manner.
  • User-friendly control panel includes power switch, fan turn on/off switches, pulse cleaning timer and safety interlock switch, etc.
