COLO-S-3217

Features

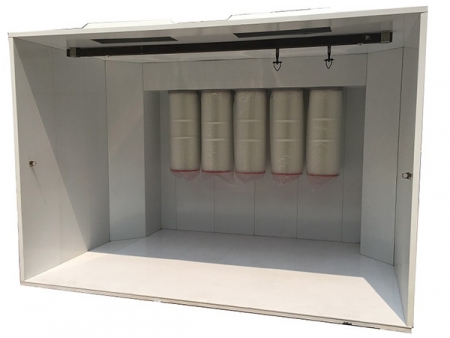

  • COLO-S-3217 powder coating booth allows operator to walk in to spray objects with more flexibility.
  • Suits for coating applications of big sized parts, such as some furniture, cabinets, large iron cast products.
  • Sturdy powder coated steel structure ensures high durability and long service life.
  • Reliable quality based on strict test before delivery, provides safe working process.
  • Delivers fully factory-assembled spray booth, just connect power and air to start working.
Specifications
Model COLO-S-3217
Operating dimensions 3000 width x 1700 depth x 2000 height mm
Overall dimensions 3203 width x 2200 depth x 2168 height mm
Weight 1200 kg
Power supply Electric
Nominal power 3.5 kW
Voltage 380V/220V
Frequency 50-60Hz
Filters Polyester
Filter quantity 5 pcs (D325*H900 mm)
Hang type filter Easy for change
Filter cleaning system Pneumatic

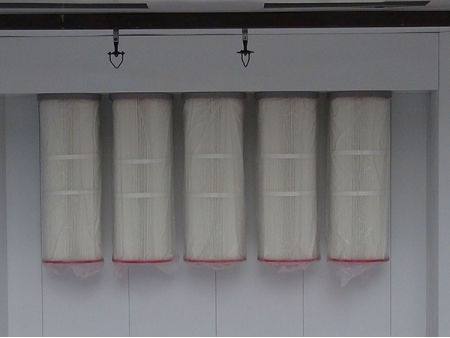

Cartridge Filters
  • Quick-release type cartridge filters can be manually removed and replaced without special tools.
  • 5 pcs 100% polyester filters with exact porosity allows to capture overspray powder more accurately.
  • Fully separating powders from airflow ensures to recirculate clean and filtered air into the booth.

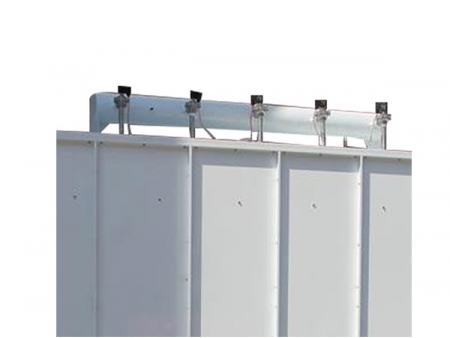

Filter Cleaning System
  • Pulse-jetting device regularly cleans the cartridge filters of accumulated powder to maximize filter service life.
  • The self-cleaning enables used powder to be collected manually for recycling.

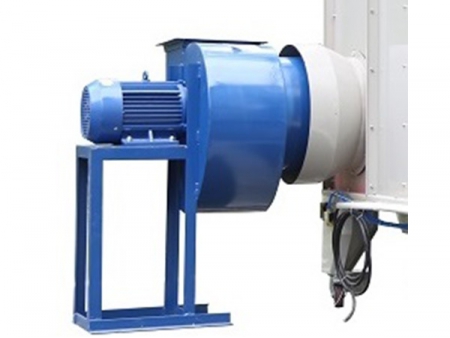

Fan
  • The air in the workshop is drawn into the spray booth through the powerful fan, which drags the powder paint from the overspray towards filters for complete capture.
  • Low-noise fan with powerful performance supplies optimum airflow.

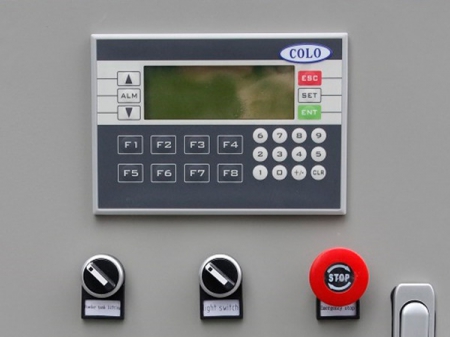

PLC Controller
  • PLC controller offers simple operation to set or adjust parameters in a highly precise manner.
  • Control panel includes power switch, fan turn on/off switches, pulse cleaning timer and safety interlock switch, etc.
