BP2-W DC LED Rigid Bar

  • Light Color: White
  • CCT: 6400-7700K
  • Beam Angle: 12′24°
  • Luminous Flux (lm/pcs):1326/2386
  • Power (W/pcs):15.6/28.08
  • Efficiency (lm/W):85
  • Voltage: 24 VDC
  • Suitable for edge-lit lightbox with width less than 2m
  • Secondary optical lens for uniform light distribution
  • Cuttable and easy to install
  • Multiple length optional, customizable

BPS1-S DC LED Rigid Bar

  • Light Color: White
  • LED Type: 3535
  • CCT: >6400K
  • Beam Angle: 7*30°
  • Luminous Flux (lm/pcs):984/1620/1872/1920
  • Power (W/pcs):8.2/13.5/15.6/16
  • Efficiency (lm/W):120
  • Voltage: 24 VDC
  • IP Rating: IP60
  • 5-Year Warrant
  • SAMSUNG 3535 SMD
  • High efficacy up to 120lm/W
  • High brightness and small voltage drop of single bar, radiation-free
  • Lighting by both the positive and reverse wiring of power supply
  • Stable and reliable performance, easy installation
  • 4 specification options

BPS300 DC LED Rigid Bar

  • Light Color: White
  • LED Type: 3535
  • CCT: 6500K
  • Beam Angle: 8*15°
  • Luminous Flux (lm/pcs): 810/1620
  • Power (W/pcs):10.8/21.6
  • Efficiency (lm/W): 90
  • Voltage: 24 VDC
  • IP Rating: IP60
  • 4-Year Warrant
  • Adopt high quality 3535 LED
  • High brightness of single bar
  • Secondary optical lens for uniform light
  • Stable and reliable performance, easy installation

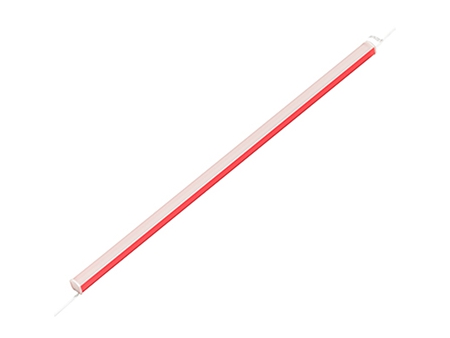

FB-XR DC LED Rigid Bar

  • Light Color: Red
  • LED Type: 2835
  • CCT: 620-625K
  • Beam Angle:99*104°
  • Luminous Flux (lm/pcs):122/243/486/567
  • Power (W/pcs):4.05/8.1/16.2/18.9
  • Efficiency (lm/W):30
  • Voltage: 24 VDC
  • IP Rating: IP66
  • 5-Year Warrant
  • Exclusive ultra-narrow design.
  • Adopt secondary light distribution design;
  • A variety of specifications are optional, support customization;

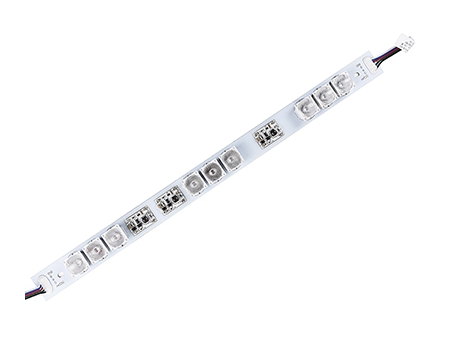

QBPS-RGB DC LED Rigid Bar

  • Light Color: Full-color
  • LED Type: 2535
  • Beam Angle:10*60°
  • Luminous Flux (lm/pcs):800
  • Power (W/pcs):≤19
  • Efficiency (lm/W):42
  • Voltage: 24 VDC
  • IP Rating: IP66
  • 3-Year Warrant
  • Input Voltage: DC24V
  • CREE single color LED, color mixing well, excellent light performance and stability
  • Can be connected with external controller, and achieve full-color effect
  • Beam angle 10*60°, better light effect and longer shooting distance
  • Aluminum PCB and backside with heat conductive adhesive tape, better heat diffusion
