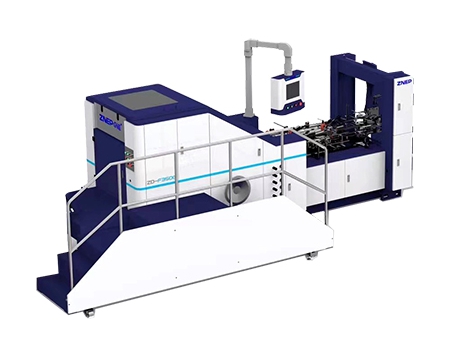

This paper bag machine is specifically designed for producing paper shopping bags with flat handles that are visible on the outside of the bags. It automates the process by creating handles from flat ropes and paper patches, which are then precisely cut, pasted, and attached to the bags.

From start to finish, the paper bag making machine transforms plain or pre-printed paper rolls into complete bags in one continuous operation. This includes attaching handles, gluing the sides, forming tubes, cutting, creasing bottoms, and gluing, leading up to the final bag formation. The machine is equipped with Japanese servo motors, ensuring rapid and stable performance while reducing adjustment times. The bags produced are of high precision and stability, and the machine itself is easy to maintain and efficient in production, making it a suitable choice for printing factories and paper bag manufacturers.

Parameters
Model
ZD-F350B
ZD-F450B
ZD-F550B
Flat handle height 100mm 100mm 100mm
Flat rope distance 76mm 95mm 95mm
Paper gram for handle 100-130g/m2 100-130g/m2 100-130g/m2
Flat rope width φ12mm φ15mm φ15mm
Handle patch length 152mm 190mm 190mm
Handle patch width 42.5-50mm 42.5-50mm 42.5-50mm
Paper patch roll dia. φ1200mm φ1200mm φ1200mm
Paper patch gram 100-150g/m2 100-150g/m2 100-150g/m2
Roll paper width 420-1050mm 650-1370mm 670-1670mm
Max. dia. of roll paper φ1500mm φ1500mm φ1500mm
Inside diameter of paper 76mm 76mm 76mm
Paper gram 60/80-150g/m2 70/80-150g/m2 80/90-150g/m2
Finished bag width 130/180-350mm 230-450mm 240-540mm
Paper tube length 260- (530 mm with handle height) 260- (630 mm with handle height) 380- (770 mm with handle height)
Gusset width 65-180mm 80-220mm 80-280mm
Max production speed 150PC/min 140PC/min 80-130PC/min
Total power 33KW 33KW 33KW
Weight 18500KG 19500KG 21500KG
Overall dimension ( L*W*H ) 13500 * 5700 * 2500mm 14500 * 5800* 2500mm 15500 * 6200 * 2500mm
Machine Configurations

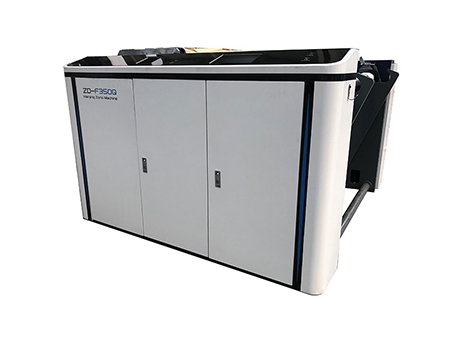

    1. FEEDING UNIT
      The roll paper fixed on the air expanding mandrel can be fed by swing arm which is equipped with lifting hydraulic system. With an alarm function, the feeding unit will sound alarm when there is no paper feeding. Improved surface smoothness of the paper during the feeding is achieved due to the web guide and uniform tension control. Paper rolls can be easily changed by pressing a button.

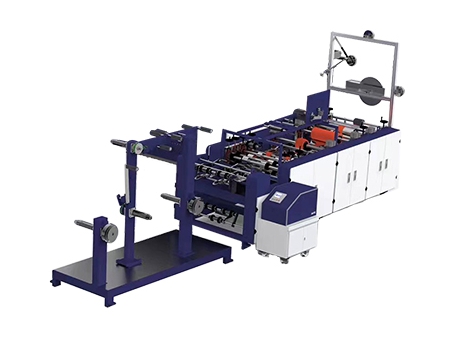

    1. HANDLE MAKING UNIT
      Roll paper can be pasted together to create a flat handle.
    1. HANDLE PASTING UNIT

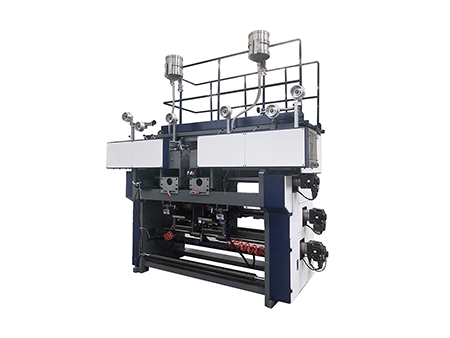

      The handle pasting machine can automatically paste the flat handle into the required position of bag body with the use of glue and then presses it firmly on the bag body before pre-creasing.
    1. BAG FORMING UNIT
      Form the paper with patches and side glue into the tube; and cut into separate pieces based on the settings. Afterwards, these separate tubes will be sent to the drum to open the four corners, then bottom glue, seal and form the square shape consequently.

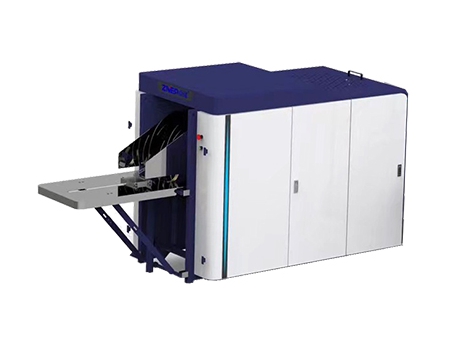

    1. BAG COLLECTING UNIT
      Compress the bags and output the bags. The number of paper bags processed can be displayed by the automatic collection and counting system.
