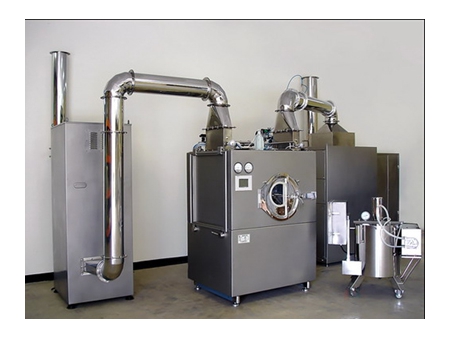

Sugar Coating, Film Coating Machine GBS
Request a Quote
Our sugar coating, film coating machine GBS series is a highly efficient sugar coating and film coating machine mainly used for pharmaceutical and foodstuff industrial applications. With features like high efficiency, low energy consumption and simple operation, the equipment is essential for the application of sugar, organic film, water soluble film-coatings for tablets, pills, and sweets.
Specification:
Model | GBS-10 | GBS-40 | GBS-75 | GBS-150 | GBS-400 |
Max. load capacity(kg) | 10 | 40 | 50 | 150 | 400 |
Cylinder dimension(mm) | 580 | 820 | 950 | 1200 | 1580 |
Inlet dimension(mm) | 260 | 340 | 380 | 480 | 480 |
Roller speed(times/min) | 3-25 | 3-20 | 3-18 | 3-18 | 3-15 |
Power(kW) | 0.55 | 1.1 | 1.5 | 2.2 | 3.0 |
Weight(kg) | 220 | 500 | 600 | 850 | 1000 |
Overall Size (mm) | 900x840x2000 | 1180x850x1530 | 1390x1050x1720 | 1770x1310x2200 | 2500x1700x2800 |
