BG-150

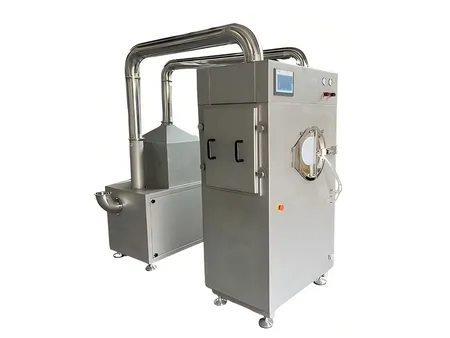

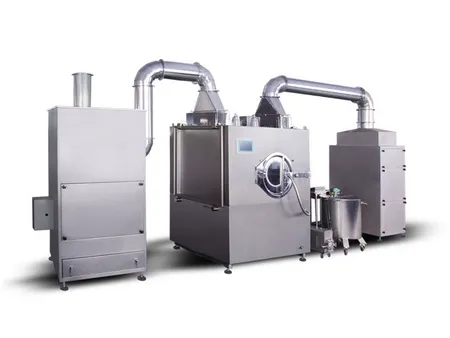

Tablet coating machine for thin film coating and sugar coating of tablets

150 Kilograms Per Batch
1200 mm Coating Pan Diameter

Our film coating machine efficiently and evenly applies a durable protective layer to tablets, pills, and bubble gum, enhancing their appearance and stability. Thanks to the intelligent control system, temperature and negative pressure adjustments can be easily managed with a touchscreen, ensuring consistent coating across different products. Its low-noise operation and eco-friendly design provide a comfortable production environment while reducing energy consumption, helping businesses lower operational costs.

Key features

Delivers high production efficiency with reduced energy consumption, making it ideal for large-scale production
Suitable for organic film, water-soluble film, and sugar coating of tablets, pills, and bubble gum
Equipped with a microcomputer PLC system for automatic adjustment of temperature and negative pressure, ensuring consistent product quality
Operates in a negative pressure environment to reduce dust and contamination, with low noise levels (≤70 dB) for a quieter workspace
Supports recording and printing of production parameters, enhancing transparency and production management

Specifications

Model		BG-150
Production Capacity		150kg/batch
Coating Pan Speed		2-18rpm
Machine Dimensions (L×W×H)		1600×1260×2300mm
Coating Pan Diameter		Ø1200mm
Main Motor Power		2.2kW
Hot Air Cabinet Motor Power		1.5kW
Exhaust Cabinet Motor Power		5.5kW
Exhaust Cabinet Air Supply Volume		3600m³/h
Hot Air Temperature Control Range		< 80°C
Power Supply	Three-phase five-wire	18kW,380V
Air Supply	Clean compressed air	>0.50
	Compressed air consumption	0.6m³/min
Steam	Steam pressure	>0.6MPa
	Steam consumption	80kg/h
Electric heating power		2kW
