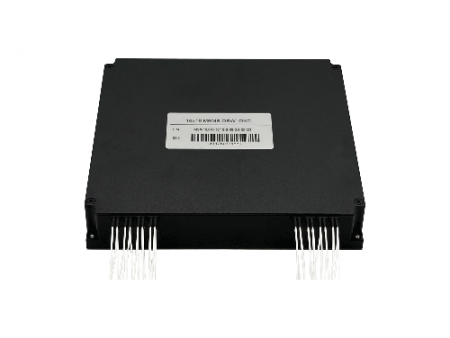

MEMS PM Optical Cross-Connect Switch - Module 3 - MxN （2＜M&N≤4）
Request a Quote
Optical Specifications
| PARAMETER | VALUE | UNIT | NOTE | |
| Wavelength Range | 13:1290~1330 15:1525~1568 | nm | Single-band: 13 or 15 | |
| Test Wavelength | 1310/1550 | nm | Each test wavelength is the CWL of a specific wavelength range | |
| MxN | 4x4/8x8 | M N≤32 & 2≤M, N≤20 | ||
| Insertion Loss | 4x4 | ≤2.4, typical 1.8 | dB | IL is measured at CWL, 23°C If with common connectors, IL increases by 0.2~0.3dB |
| 8x8 | ≤2.8, typical 2.2 | |||
| Return Loss | ≥45 | dB | Or customer specify | |
| Repeatability | ≤0.1 | dB | Repeatability is defined after 100 cycles | |
| Crosstalk | ≥50 | dB | Or customer specify | |
| Polarization Dependent Loss | ≤0.35 | dB | ||
| Wavelength Dependent Loss | ≤0.6 | dB | WDL is measured at CWL±20nm, 23°C | |
| Temperature Dependent Loss | ≤0.6 | dB | ||
| Extinction Ratio | ≥17 | dB | Or customer specify | |
| Switch Time | ≤5 | ms | One set of connection configurations Excluding protocol transmission time When using optimized voltage ramp | |
| Durability | ≥1x109 | cycle | ||
| Maximum Optical Power | ≤500 | mW | ||
（All specifications are without connectors unless otherwise specified.）
Electrical and Mechanical Specifications
| PARAMETER | VALUE | UNIT | NOTE |
| Latching Type | Non-latching | ||
| Control Type | UART | ||
| Supply Voltage | 5~12 | V | |
| Power Consumption | ≤5 | W | 8x8 |
| ≤6.3 | 12x12 | ||
| ≤7.5 | 16x16 | ||
| Dimension | 158x150x29 | mm |
(All specifications apply to MSX M3.)
Environmental Conditions
| PARAMETER | VALUE | UNIT | NOTE |
| Operation Temperature | -5~65 | °C | |
| Storage Temperature | -40~85 | °C | |
| Operation Humidity | 5~95 | %RH | |
| Storage Humidity | 5~95 | %RH |
