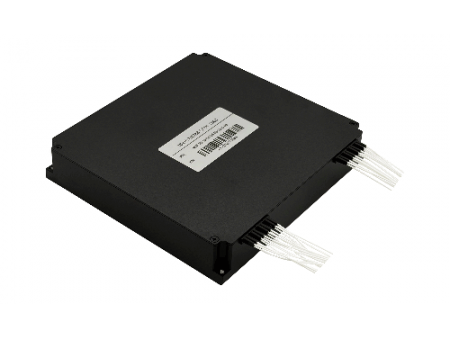

MEMS SM Optical Cross-Connect Switch - Module 3 - MxN (2 < M & N ≤16)
Request a Quote
Optical Specifications
| PARAMETER | VALUE | UNIT | NOTE |
| Wavelength Range | 13:1290~1330 15:1525~1568 | nm | Single-band: 13 or 15 |
| Test Wavelength | 1310 or 1550 | nm | Each test wavelength is the CWL of a specific wavelength range |
| Channels | 2~8 | N | |
| Insertion Loss | 1x2: ≤1.0 | dB | 1. IL is measured at CWL, 23° C 2. If with standard connectors, IL increases by 0.2~0.3dB |
| 1x4: ≤1.2 | |||
| 1x8: ≤1.4 | |||
| Return Loss | ≥45 | dB | Or customer-defined |
| Repeatability | ≤0.05 | dB | Repeatability is defined after 100 cycles |
| Crosstalk | ≥45 | dB | Or customer-defined |
| Polarization Dependent Loss | ≤0.2 | dB | |
| Wavelength Dependent Loss | ≤0.3 | dB | WDL is measured at CWL ±20nm, 23° C |
| Temperature Dependent Loss | ≤0.3 | dB | |
| Extinction Ratio | ≥18 | dB | |
| Switch Time | ≤5 | ms | 1.Excluding protocol transmission time When using optimized voltage ramp 2.Faster 1xN switching time version available upon request |
| Durability | ≥1x10⁷ | cycle | |
| Maximum Optical Power | ≤500 | mW |
（All specifications are without connectors unless otherwise specified.）
Electrical and Mechanical Specifications
| PARAMETER | VALUE | UNIT | NOTE |
| Latching Type | Non-latching | ||
| Control Type | UART or parallel | ||
| Supply Voltage | 5±0.25 | V | |
| Power Consumption | <0.7, | W | |
| Dimension | 75x30x13 | mm | 2<N<8 |
（All specifications apply to MS M1.）
Environmental Conditions
| PARAMETER | VALUE | UNIT | NOTE |
| Operation Temperature | -5~65 | °C | |
| Storage Temperature | -40~85 | °C | |
| Operation Humidity | 5~95 | %RH | |
| Storage Humidity | 5~95 | %RH |
