SPIDER System
SPIDER Spiral Rope / Grid Net / Erosion Blanket

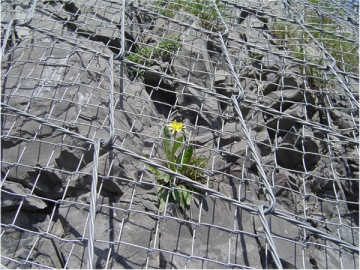

The SPIDER spiral rope net is made using high tensile 3 mm steel wire, which is the main component of the SPIDER System. SPIDER nets with a layer of grid net stabilizes large areas of rock with anchors and boundary ropes. The system features a large net reinforced by a smaller grid to ensure that rocks large and small are held in place.
Components
The SPIDER system consists of the SPIDER spiral rope net, grid net, anchors, anchor bearing plate, border and suture ropes and net connection elements.
Standard Specifications of the SPIDER Spiral Rope Net
Rope wire structure:3*3mm,
Hole Inscribed circle diameter: 250mm ( /- 5%)
Roll size: 3.5m x 5/10m
Grid Net
Wire diameter: 2.0mm or 2.2mm
Hole size: 50mm*50mm
Roll size: 2m*20m

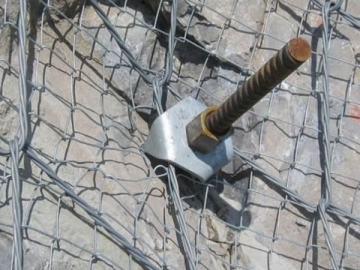

Anchors
Deformed steel bar anchor diameter: 25mm or 28mm
Length:2m -5m
Anchor bearing plate: 320mm x 170/180mm
Rope
Border rope diameter: 12mm or 16mm
Seaming rope diameter: 8mm
