SNS Passive Protection System / SNS Netting / SNS Wire Mesh
SNS Passive Protection System / SNS Netting / SNS Wire Mesh

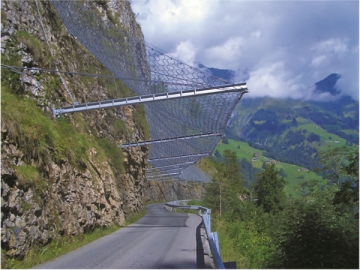

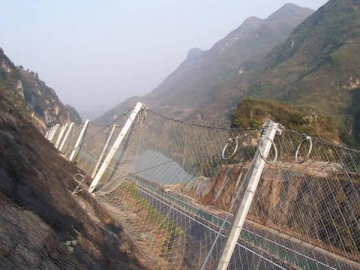

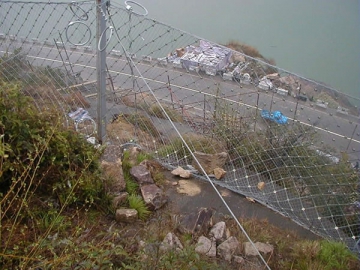

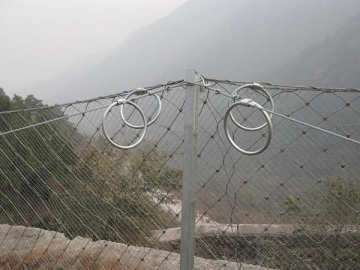

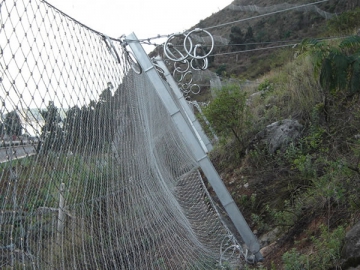

The SNS passive protection system is also called a stone blocking mesh. The system is made up of flexible steel wire rope netting that is installed into slopes to prevent rock falls. It can also be installed in mud-rock flow areas to form a flexible fencing dam to prevent large, dangerous flows.
Standard Specification
Diamond Wire Rope Net
Rope wire diameter: 8mm
Hole size: 200mm ( /- 5%)
Roll size: 4m x 5m, etc.
Grid Net
Wire diameter: 2.0mm or 2.2mm
Hole size: 50mm*50mm
Roll size: 2m*20m
Anchors
Steel Rope anchor diameter: 16mm
Length:2x2m
Rope
Border rope diameter: 12mm or 16mm
Seaming rope diameter: 8mm
Other Components
Steel column, rope support base, vacuum ring.
| Common ring network structure configuration and protection features (consistent with railway industry standard: TB / T 3089-2004 and "The People's Republic of China Communication Industry Standard: JT/T528-2004) | |||
| Model | Grid | Configurations | Main protection |
| RX I-025 (Ring Network) | R5/3/300 | Supported by steel columns rope system suture anchor rope | Wit RX-025 |
| RX I-050 (Ring Network) | R7/3/300 | With RX I-025 | RX-050 |
| RX I-075 (common-type ring network) | R7/3/300 | With RX-025 | RX-075 |
| RX I-100 (Ring Network) | R9/3/300 | With the RX-025 | Within the intercept falling rock impact can 1000kj |
| RX I-150 (Ring Network) | R12/3/300 | With RX-025 | Within the intercept falling rock impact can 1500kj |
| RX I-200 (Ring Network) | R19/3/300 | With RX-025 | Within the intercept falling rock impact can 2000kj |
Note
1. the table models behind the figures represent the ring fence of the energy absorption capacity; such as "050" indicates that the maximum energy absorption capacity of the system 500kj, "150" indicates that the system maximum energy absorption capacity of 1500kj, and so on.
2. Ring network for more than flexible protection system "major components and characteristics of the" If your design does not fully consistent with the department, the company can design according to your processing and manufacturing requirements.
3. Product quality standards are in line with "The People's Republic of China Railway Industry Standard: TB / T 3089-2004 "and" The People's Republic of China Communication Industry Standard JT/T528-2004 "
