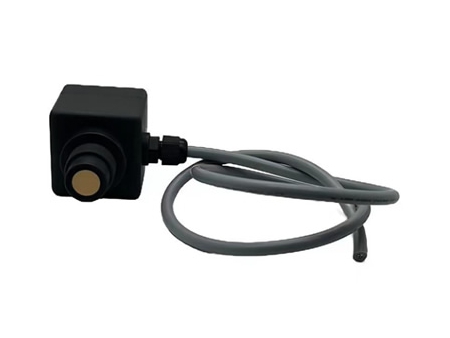

LUT-100 Ultrasonic Level Sensor
Request a Quote
Features
- Due to the strong anti-interference ability, the ultrasonic level sensor can be used for liquid level measurement in harsh environments.
- Built-in temperature sensitive device ensures a real-time temperature automatic compensation function.
- A variety of output types are available to meet different industrial site interface requirements.
- The minimum blind zone is 10mm.
Applications
- Tap water, sewage treatment liquid level, oil drum oil level detection
- Food processing liquid level detection
- Liquid level detection of collecting wells and biochemical pools
- Liquid level measurement of various slurries
Technical Parameters
| Model | LUT-101 With display | LUT-102 （without display） |
| Measuring Range | 1m, 2m | |
| Measurement Dead Zone | ≤0.06~0,15m （depending on range） | |
| Emission Angle (Full Angle) | Less than 6° | |
| Precision | ±0.1%（±1mm or ±1.5mm） | |
| Resolution | 1mm | |
| Powered Supply | DC12—24V Power consumption: < 1.5W | |
| Output signal | Current: 4~20mA, 0~20 mA Voltage: 0~5V, 0~10V Digital: RS485（Modbus） Switch output: three-way NPN | |
| Connection Method | M30*1.5 | |
| Protection Class | IP65 | |
| Working Temperature | -10℃~50℃ | |
| Working Pressure | 0.8MPa | |
| Temperature Compensation | Full range automatic | |
| Storage Humidity | ≤80%RH, no condensation | |
