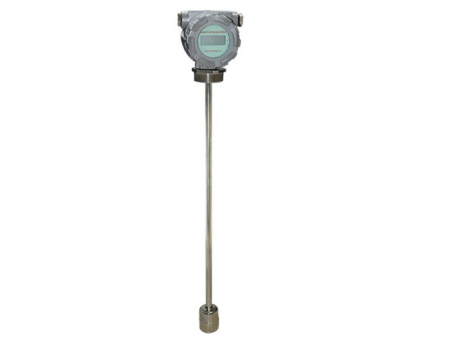

LST Series Level Transmitter

LST Series Level Transmitter
LST Series Level Transmitter
Request a Quote

The stainless steel level transmitter is engineered to provide continuous and reliable liquid level measurement. With selectable output signals of either 0–5 VDC or 4–20 mA, this transmitter utilizes magnetic reed switches integrated with a resistor network to generate precise, proportional output corresponding directly to the float’s position.

Designed for flexibility, the transmitter supports current or voltage outputs, and includes a four-wire low-level alarm option. It can be externally installed via a 2" NPT connection or flange, providing ease of installation and adaptability. Featuring an optional LCD display for clear and convenient monitoring, the sensor operates reliably within a broad temperature range of -30℃ to 125℃, and withstands working pressures from 1.5 MPa to 4.0 MPa.

Features
  • Excellent corrosion resistance ensures longevity and consistent performance
  • Supports remote liquid level display and control functionality
  • Optional LCD display available for convenient monitoring
  • Wide operating temperature range for versatile industrial use
Applications

The level transmitter is suitable for demanding applications involving sanitary, toxic, corrosive, or explosive media. Industries extensively utilizing this transmitter include petrochemicals, medical equipment manufacturing, research laboratories, food and beverage production, chemical storage tanks, and other specialized fields requiring precise and safe liquid-level monitoring.

Technical Specifications
Model <> LST-500 <>LMT-1000
Working Voltage 12Vdc 12Vdc
Output Signal 4 to 20mA 4 to 20mA
Accuracy ±15mm ±2.5mm
Input Resistance Less than 3500 Less than 3500
Length of Lead Wire 1000/500mm 1000/500mm
Working Temperature Range 30 to 125℃ -30 to 125℃
Max. Working Pressure 4.0MPa (SUS304) 4.0MPa (SUS304)
Special Gravity of Liquid 0.65g/cm³ 0.65g/cm³
Protective Class IP65 IP65
Display LCD display selected LCD display selected
Mounting Threads 2"NPT (or flange) 2"NPT (or flange)
Approval CE CE

*The NMT-level sensor variant with Hall-effect elements instead of reed switches is also available upon request.
