XHH-C75-160 Light Gauge Steel Framing Machine Manufacturer

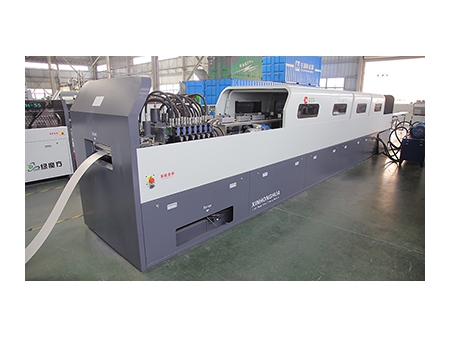

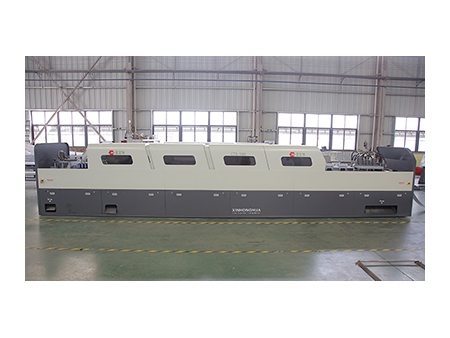

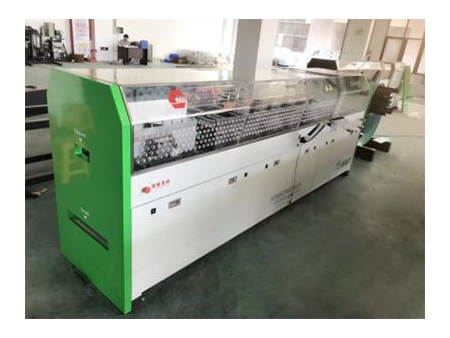

XHH-C75-160 Light Gauge Steel Framing Machine

Request a Quote

View All: http://roll-formingmachines.com/1-8-xhh-c75-160-light-gauge-steel-framing-machine.html

Engineered as a versatile solution, the light gauge steel framing machine efficiently produces heavier and wider frame and truss structures. It features a width range of 0.75-1.6mm and a thickness range of 0.6-1.5mm, making it suitable for a variety of residential and commercial applications.

Profile Dimensions

Specifications

Model	C75-89-100-140
Dimension	800016001900mm
Main Servo Motor Power	14kW
Hydraulic Motor	11kW
Forming Steps	17Steps
Forming Speed	35m/min(without punching and cutting)
Effective Width for C channel	75mm, 89mm, 100mm, 140mm
Flange Height	41mm
Lip	10mm
Material Thickness	0.6-1.5mm
Tolerance for Cutting and Punching	±1mm
Tolerance for Forming	±1mm
Control System	IPC computer controlling system
Rollers	Cr12
Material for Shaft	40Cr
Material for Puncher	Cr12Mov
Material for Cutter	Cr12Mov

Features

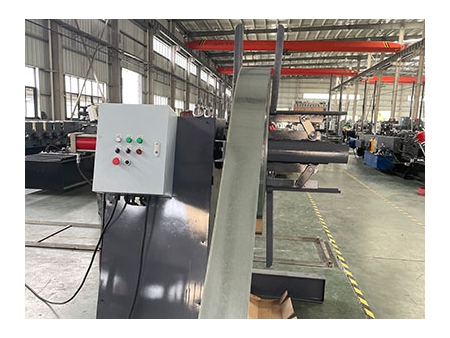

Uncoiler
1. Automatic start-stop device, converter motor driven
2. Strip Width: ≤500mm
3. Coil Exterior Diameter: ≤1300mm
4. Rated Load: 3T
5. Main Motor Power: 4kW
6. Material Width: 50-500mm
7. Inner Diameter: 450-530mm

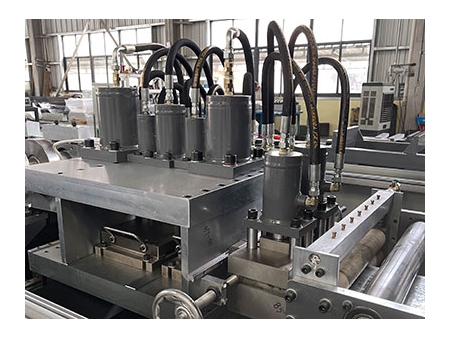

Hydraulic Cutting & Punching Die
1. Punching method: Pre and Post Punching
2. Die Material: Cr12Mov
3. Cutting method: Forming cutter, blanking shear with three blades
4. Blade Material: Cr12Mov
5. Surface treatment: CNC semi-finishing, vacuum treatment to 58-60HRC, CNC finishing

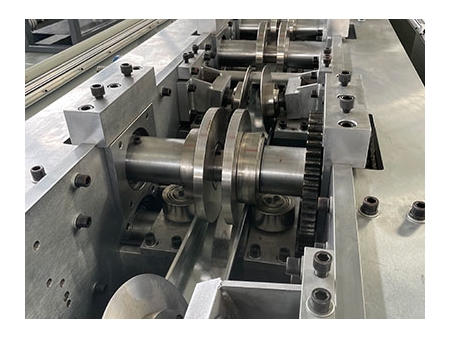

Forming Roller
1. Material: Cr12
2. CNC semi-finishing, vacuum heat treatment 60-62HRC, CNC finishing to IT5 accuracy, hard chromium plating.

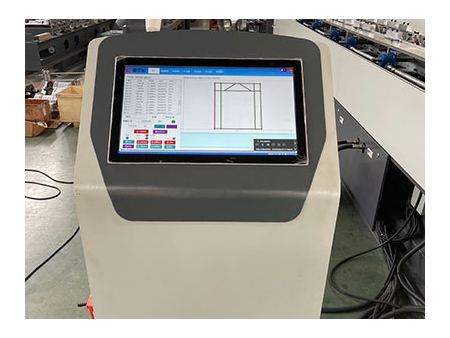

Control System
1. IPC Controlling 1 set
2. PLC controller 1 set
3. 3 NC controlling software
4. Punching position controlling
5. Cutting position controlling
1. Production batch quantity controlling
2. Batch detail quantity controlling
3. Real-time monitoring during production
4. Remote control and maintenance

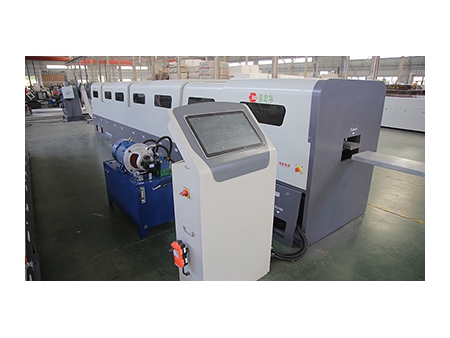

The steel frame roll-forming equipment mainly consists of:

Main forming system
3 Tons hydraulic uncoiler
Servo motor system
IPC computer controlling system (Lenovo Laptop)
Production software (1set)

Design Software-Vertex, using license (forever)
Hydraulic automatic punching device (Web/Lip Notch, Swage, Service Hole, Chamfer, Dimple, Bolt Hole)
Hydraulic post-cutting device (material: Cr12Mov)
Automatic printing device
Run out table (4m)

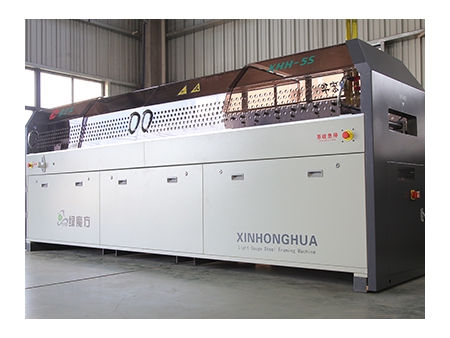

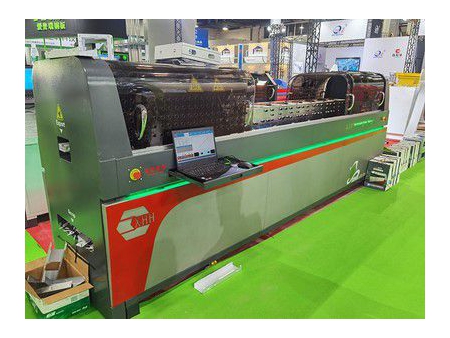

Other Light Gauge Steel Framing Machines with Same Advantages
