Refrigerated Semi-Trailer
The refrigerated semi-trailer offers an 85 m³ ultra-large cargo capacity, enabling the efficient transport of fresh goods over long distances. Its frameless load-bearing design paired with a JOST kingpin and landing gear ensures durability while keeping the trailer lightweight, with an unladen weight of only 8,200 kg and a maximum payload capacity of 40 tons.
The running gear features three BPW disc-braked axles, each rated for 10 tons, supported by an air suspension with lifting function to adapt easily to varying road conditions. Safety is enhanced with a WABCO EBS braking system combined with disc brakes, delivering stable and reliable control under load.
Cooling is handled by a Carrier 7300 refrigeration unit, ensuring efficient and consistent temperature control for sensitive cargo. The trailer also adopts a 24 V electrical system with European-standard lighting, offering high compatibility. Additional features such as aluminum alloy side guards and a toolbox improve practicality and collision protection, making this semi-trailer a dependable choice for professional cold chain logistics.
| Truck type | | Cargo box height (mm) | 2565 |
| Dimensions (L×W×H) (mm) | 13600×2600×4000 | Cargo box capacity (m³) | 85 |
| Kingpin height (no load) (mm) | 1150 | Gross vehicle weight (kg) | 40000 |
| Wheelbase (mm) | 7050 1310 1310 | Kingpin load (kg) | 16000 |
| Cargo box length (mm) | 13424 | Rear axle load (kg) | 24000 |
| Cargo box width (mm) | 2460 | Curb weight (kg) | 8200 |
| Chassis structure | Frameless load-bearing structure, equipped with JOST 50# bolt-in kingpin and JOST AC400 landing gear | Drive | Three disc-brake axles (brand: BPW 400K), rated load 10 tons per axle Air suspension with integrated lift, optional front axle lift Six 385/65 R22.5 tyres, with aluminum alloy wheels |
| Brake | WABCO 2S/2M EBS system Equipped with 4 dual-chamber and 2 single-chamber brake actuators Disc brake | Electrical | 24V electrical system compliant with Chinese standards Equipped with European-style lighting fixtures |
| Refrigeration | Carrier 7300 refrigeration unit (USA) | Accessories | Aluminum alloy underrun protection device One aluminum toolbox on the left side Rear bumper equipped with rubber anti-collision blocks (left and right) |

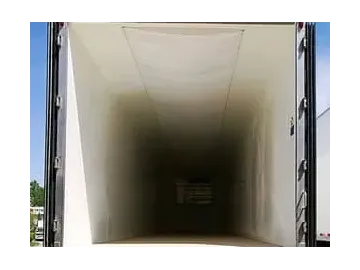

- Rear cargo compartment
