Refrigerated Truck (Diesel, 3.5T)
The 3.5-ton insulated refrigerated truck is designed for urban cold chain distribution. Powered by a Cummins 2.8T turbocharged diesel engine, it delivers 345 Nm of torque at just 1,500 rpm, ensuring strong low-speed performance for city routes.
The 20.3 m³ cargo box features an 80 mm reinforced insulated roof with a food-grade liner, maintaining temperature stability with less than a 3°C rise over 12 hours without power, ideal for short-distance delivery of dairy products and pharmaceuticals. Safety is ensured by front and rear disc brakes with ABS stability control, providing reliable braking even under full load in wet conditions.
Driver comfort is enhanced with a ventilated, heated, and shock-absorbing driver’s seat, along with a 10.25-inch integrated display featuring a rearview camera. Optional side doors and an anti-slip, corrosion-resistant aluminum ladder improve loading efficiency by up to 40%. Certified to Euro V emission standards, this truck is a flexible, reliable choice for small-scale cold chain transport.
| Truck type | Refrigerated Truck, 3.5T | Compression ratio | 16.9 |
| Manufacturer | DESA | Fuel supply | Direct injection |
| Fuel type | Diesel | Cylinder head material | Cast aluminum |
| Emission standard | Euro V | Fuel tank capacity | 120L |
| Published on | January, 2025 | Urea tank capacity | 14L |
| Max. power (kW) | 103.3 (@2900rpm) | Transmission | 5MT (manual transmission) |
| Max. torque (N.m) | 345 (@1500-2000rpm) | Number of gears | 6 |
| Engine | Cummins engine (four-stroke, compression ignition, turbocharged) | Drive mode | 4×2 |
| Transmission | Mechanical, manual | Front suspension | MacPherson independent suspension |
| Dimensions (L×W×H) (mm) | 6130×2385×3345 | Rear suspension | Hotchkiss suspension |
| Wheelbase (mm) | 3360 | Assist | Hydraulic power assist |
| Vehicle weight (kg) | 3300 | Front brake | Disc brake |
| Number of doors (pc) | 2 | Rear brake | Disc brake |
| Number of seats (pc) | 3 | Parking brake | Manual brake |
| Interior size of cargo box (mm) | 4240×2180×2200 | Front tyre | 205/75R16C |
| Exterior size of cargo box (mm) | 4400×2300×2380 | Rear tyre | 205/75R16C |
| Total weight (kg) | 3500 | Airbags | Driver (standard) Passenger (optional) |
| Engine model | ISF2.8s5148T | Tyre pressure monitoring system (TPMS) | Standard |
| Displacement (ml/L) | 2776/2.7 | Seatbelt reminder | Driver seat (standard) |
| Air intake | Turbocharged | ABS | Standard |
| Arrangement of cylinders | Inline | Electronic stability control (ESC/ESP/DSC) | Standard |
| Number of cylinders (pc) | 4 | Roof | Thickness 80mm Exterior fiberglass reinforced plastic (FRP) panel Interior food-grade thermoplastic panel |
| Front wall, side wall, and rear door | Exterior FRP panel, interior food-grade thermoplastic panel Thickness of side wall 60mm Thickness of front wall and door 80mm | Cargo box dimensions | External dimensions: 4400×2300×2380mm Internal dimensions: 4240×2180×2200mm Volume: 20.3 m³ |
| Floor | Thickness 100mm (80mm insulation layer 20mm plywood) Food-grade thermoplastic panel with aluminum alloy ventilation channels on top Equipped with 2 drainage holes at the front end and 8 lashing rings (4 per side) | Optional side door | A side door can be added upon customer request |
| Ladder | Rear aluminum alloy ladder, lightweight, high-strength, corrosion-resistant, ensuring safe and convenient operation | Cab & Interior Features | One-touch central locking with anti-pinch electric window PU seats, air-suspension driver seat (ventilated & heated) 10.25" MP5 infotainment system with Bluetooth and rearview camera 7" color instrument cluster |

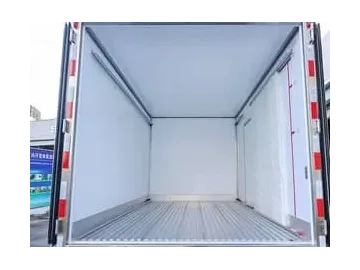

- Rear cargo compartment

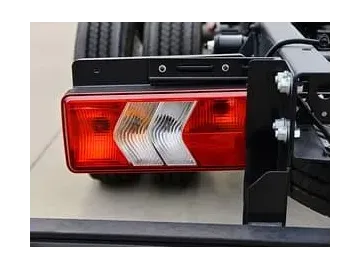

- Tail lights
- Chassis
