Designed for OEM needs, LMT-270 series level transmitters are the ideal level sensor for shallow tanks and reservoirs. This compact unit features a durable construction made of stainless steel or brass with a lightweight package, suitable for continuous level indication and ideal for tanks less than 2 feet deep.

Our level transmitters are exceptionally versatile because of a number of configurable options available.

Features
  • Combining durability of metal with a compact design for restricted spaces
  • Stainless steel or brass mountings and stems
  • 4mm resolution

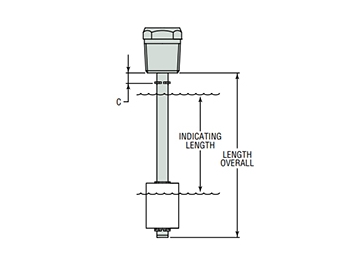

  • Indicating length to 14˝ (356 mm)
  • Stem length to 20˝ (508 mm)
Technical Parameters
  • Mount and Stem Material: 316L or 304 stainless steel
  • Max. Length: 20˝ (508 mm)
  • Mounting Position: vertical ±30° inclination
  • Float Stops: beryllium copper grip rings (brass unit), S.S. ARMCO PH-15-7MO grip rings (stainless steel units)
  • Pressure Rating: 20 bar (Max.)
  • Float Dimensions: dia.28×28×dia.9.5
  • Min. Liquid Specific Gravity: 0.65g/cm³
  • Operating Temperature: -40 to 125℃
  • Mounting Type and Materials: SUS304 material, mounting thread 1-5/16-12UNF-2A
  • O ring: Neoprene
  • Electrical Connections Lead Wire Length: 24”
  • Output: proportional voltage
