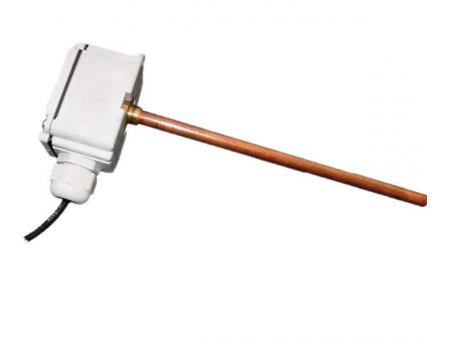

TST Series Temperature Transmitter

TST Series Temperature Transmitter
TST Series Temperature Transmitter
Request a Quote

The TST temperature transmitter comprises a platinum resistance temperature probe, an advanced temperature conversion module, and a protective housing. Utilizing high-quality platinum resistance as its sensing element, the sensor accurately measures temperature changes. The measured resistance signal undergoes internal amplification, precise non-linear correction, V/I signal conversion, constant current operation, and reverse polarity protection, resulting in a stable, linear electrical signal output corresponding directly to the temperature.

Protected by a durable stainless steel casing, the temperature probe ensures reliable performance in various conditions. The transmitter head features a waterproof aluminum junction box, rail-mounted instrument box, or top-mounted enclosure, offering high sensitivity, exceptional stability, precise measurement accuracy, and extended service life.

Features
  • High performance: Micro-processor-based sensing technology ensures long-term accuracy and high reliability.
  • High reliability: Dual-compartment housing realizes high resistance capability to harsh environment, Variety of sensor inputs: The type of sensor input is user-selectable from RTD (Pt100, Pt1000).
  • Advanced microprocessor-based sensing technology guarantees high performance with long-term accuracy and reliability.
  • Durable dual-compartment housing designed to withstand harsh environmental conditions.
  • Supports selectable input from RTD sensor types, including Pt100 and Pt1000, based on user requirements.
Applications

The TST Series Temperature Transmitter is extensively utilized for precise temperature monitoring in diverse fields and industries, including:

  • HVAC systems and environmental controls
  • Storage facilities and machine room temperature management
  • Ventilation duct temperature measurement
  • Building automation systems (BA)
  • Petroleum processing and chemical production facilities
  • Metallurgy and electric power plants
  • Light and textile industrial applications
  • Food and beverage production workshops
Technical Specifications
Supply Voltage 12 VDC;
Output Signal 4 to 20mA;0 to 5V;0.5 to 4.5V
Input Signal Pt100, Pt1000 temperature sensor
Input Cable Resistance Less than 50Ω
Rating Power Less than 0.6W
Load Resistance Less than 5kΩ (current output), more than 3kΩ (voltage output)
Humidity Less than 90% RH at 40℃
Accuracy ±0.3%, ±0.5% or ±1.0%
Stability ≤0.2% F.S.
Operating Temperature 0 to 85℃
Mounting Threads 3/4"NPT, G1/2", M16, or can be customized
Electrical Connection Aluminum case, or can be customized
Sealing Rating IP65
Inference of Ambient Temperature Drift 0.2% class, 0.02% F.S./℃
0.5% class, 0.05% F.S./℃
1.0% class, 0.05% F.S./℃
