Production lines for cardboard edge protectors

Producing high-quality cardboard edge protectors is made efficient with a machine that integrates advanced processes such as paper feeding, gluing, forming, cutting, and automatic stacking. These protectors are essential for reinforcing packaging edges, preventing damage during transportation and handling. With a streamlined production flow, the paper edge protector manufacturing machine enhances efficiency and precision, making it an invaluable asset for any packaging operation.

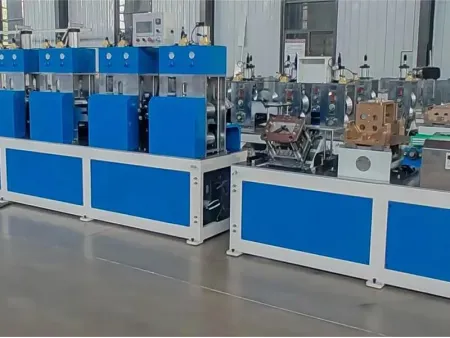

Paper Edge Protector Production Line
  • Edge protector size: 20-100mm (one side width)
  • Max. speed: 50m/min
  • Economic speed: 20-40m/min
  • Cutting precision: ±1mm
  • Max. paper layers: 13 layers
  • Machine dimensions: 22000×1400×2300mm
  • Total weight: 4500kg
  • Motor power: 11.7 kW
  • Core board paper: 420gsm
  • Face paper: 180-300gsm
L-Shaped / U-Shaped / Flat Edge Protector Production Line
  • Sets of pressing rolls (L-shaped / U-shaped edge protector): 8 sets
  • Sets of pressing rolls (flat edge protector): 5 sets
  • Max. production speed: 45m/min
  • Side width of L-shaped / U-shaped edge protector: 30-100mm
  • Thickness of edge protector: 2-5mm
  • Width of flat edge protector: 30-220mm
  • Paper layers: 3-13
  • Motor power: 5.5-7.5kW
