Slotter Machine

Request a Quote

View All: http://jlcartonmachine.com/8-2-slotter-machine.html

Slotting machines are key tools for creating precise slots in materials including cardboard and paperboard, which is crucial for making strong, visually appealing boxes. These slotters are widely used in various sectors such as packaging, printing, shoemaking, and electronics, helping to improve the quality of production and make manufacturing processes smoother. Cardboard slotters are particularly important for producing high-quality packaging. They ensure that slots are precisely cut, which is essential for the structural integrity and aesthetic quality of the final product. This accuracy is crucial in industries where packaging quality and durability are directly linked to product safety and customer satisfaction.

Corrugated Paperboard Rotary Slotting Machine

Specifications

Model	Blade diameter (mm)	Sheet size (mm) (l*w)	Max. slot thickness (mm)	Slot width (mm)	Slotting speed (sheets/min)
YQ-2000	400	1200×2000	300	7	0-70
YQ-2200		1200×2200	300	7	0-70
YQ-2400		1200×2400	300	7	0-70
YQ-2600		1200×2600	300	7	0-70
YQ-2000	480	1450×2000	350	7	0-70
YQ-2200		1450×2200	350	7	0-70
YQ-2400		1450×2400	350	7	0-70
YQ-2600		1450×2600	350	7	0-70

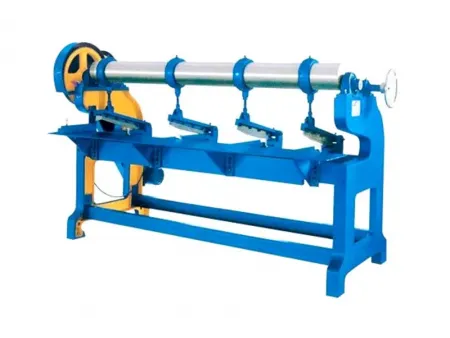

Four-Knives Slotter Machine

Working width: 2500mm
Knife length: 430mm
Max. slotting size (W×D) : 7×350mm
Max. corner cutting size (W×D): 60×350mm
Working speed: 50sheets/min
Power: 1.5kW
Weight: 1.8T
Dimensions: 3000×1200×1500mm

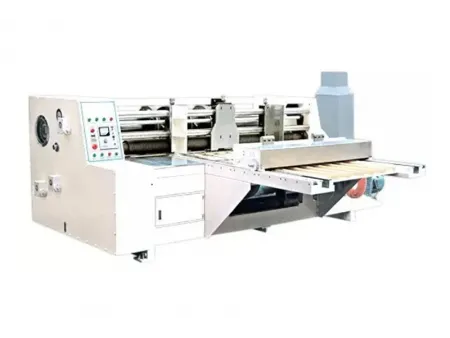

Automatic Rotary Slotting Machine

Max. working speed: 100sheets/min
Max. sheet size: 1200× 2000/2200/2400/2600mm
Min. sheet size: 300×650mm
Slot width: 7mm
