Request a Quote

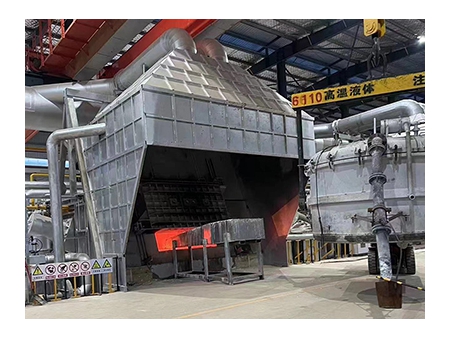

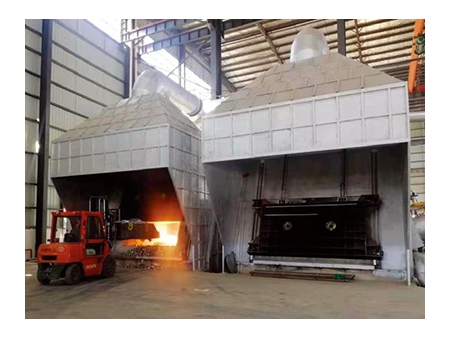

This series of centralized melting furnace is integrated with melting and heat preservation, specifically as follows:

  • The bright flame burner, specially developed for aluminum alloy melting, can reduce the generation of oxide and improve the radiation ability of the flame.
  • Low burning loss rate, with metal burning loss less than 1.7%
  • The furnace body design is reasonable, has a solid structure, is easy to access for cleaning, and has no dead angles

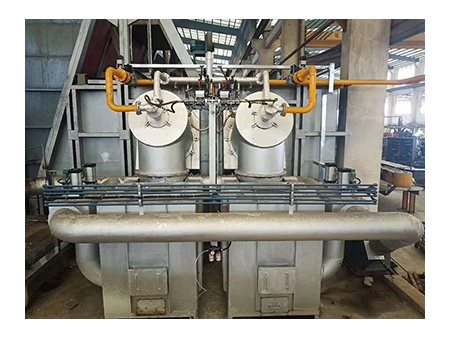

  • Advanced combustion system design
  • Flue gas heat recovery and utilization reduce energy consumption, with high thermal efficiency reaching more than 45%
  • Adaptable to various fuels: coal gas, natural gas, liquefied petroleum gas, diesel, and heavy oil
  • The furnace lining uses high-quality refractory materials, with a service life of more than three years.
  • The temperature control in the holding chamber for molten aluminum can reach ± 5℃

Technical Specifications

Modal Melting Furnace Capacity (T)
YX-15
15
RJ-25
25
RJ-35
35
RJ-50
50
RJ-80
80
RJ-120
120
