Used for the production of dual-glass solar modules

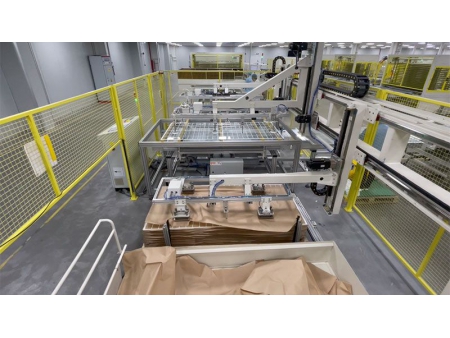

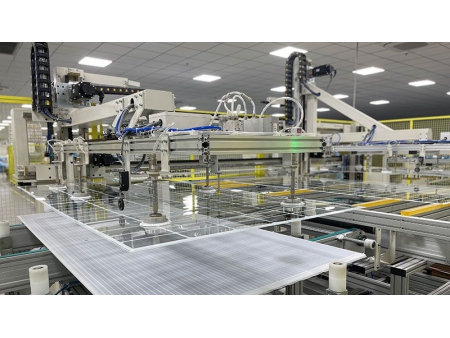

A second glass loading and placement machine is a high-precision dual-glass panel making machine. The glass machinery features short cycle time, high positioning precision and a small size. The loading machine can adapt to different specifications of glass and is an essential equipment for dual-glass panel production.

Technical Parameters
Item Parameters
Panel size (1,680-2,650)*(992-1,500)mm
Cycle time ≤20s
Positioning deviation ≤±1.5mm
Glass specifications 2-5mm
Panel weight 40kg
Overall dimensions (L*W*H) 5,940*3,900*3,140mm
Voltage 3 phase 5 wire 380V, 50Hz, AC±20%
Power ≤5kW/h
Air pressure 0.6-0.7MPa
Features
  • Separable paper recycling function;
  • Compatible with different specifications and models of glass;
  • The dust removal device prevents dust from falling back to the glass surface;
  • The Upper glass is stopped above the lower glass before placement, and both glasses are restored to be placed at the same time for precision and stability.
