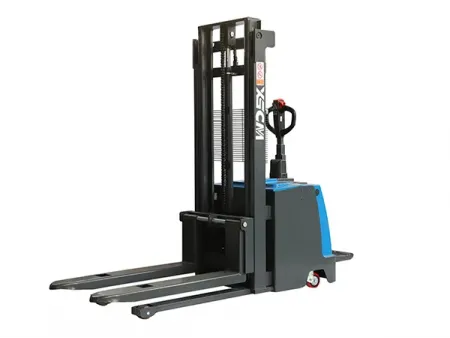

STD15N Stand-On Electric Pallet Stacker
Request a Quote
Electric stacker with stand-on platform for lifting loads of up to 2000kg
- Max. load capacity
1500-2000kg - Load center
600mm - Max. lifting height
2500mm - Travel speed (without load)
5.5km/h
- Drive type: electric, stand-on platform configuration
- Control system: AC drive control
Compact and easy to maneuver, this stand-on pallet stacker lets the operator travel with the load for faster handling and improved efficiency. It’s suitable for lifting, stacking, and medium-distance transport in warehouses and logistics centers.
Specifications
| Model | | |
| Performance | ||
| Max. load capacity | 1500kg | 2000kg |
| Load center | 600mm | 600mm |
| Max. lifting height | 2500mm | 2500mm |
| Travel speed (without load) | 5.5km/h | 5.5km/h |
| Travel speed (with load) | 5km/h | 5km/h |
| Lifting speed (without load) | 180mm/s | 180mm/s |
| Lifting speed (with load) | 120mm/s | 120mm/s |
| Lowering speed (without load) | 140mm/s | 140mm/s |
| Lowering speed (with load) | 114mm/s | 114mm/s |
| Gradeability (without load) | 7% | 7% |
| Gradeability (with load) | 6% | 6% |
| Dimensions | ||
| Overall length of frame | 2138mm | 2138mm |
| Overall width of frame | 1046mm | 1046mm |
| Overall height when mast lowered to lowest | 1734mm | 1734mm |
| Overall height when mast lifted to highest | 2976mm | 2976mm |
| Wheelbase | 1508mm | 1508mm |
| Fork length | 1150mm | 1150mm |
| Fork outside width | 680mm | 680mm |
| Fork inside width | 300mm | 300mm |
| Fork thickness | 65mm | 65mm |
| Fork height when fork lowered to lowest | 90mm | 90mm |
| Min. ground clearance | 20mm | 20mm |
| Theoretical width of minimum aisle for right-angle stacking (1200×1000) | 2470mm | 2470mm |
| Min. turning radius (without platform) | 1800mm | 1800mm |
| Min. turning radius (with platform) | 2175mm | 2175mm |
| Tire | ||
| Drive wheel size | 230×75mm | 230×75mm |
| Caster wheel size | 130×55mm | 130×55mm |
| Wheel material | Polyurethane | Polyurethane |
| Electrical Components | ||
| Drive motor type | AC series motor | AC series motor |
| Rated output | 1.5kW | 1.5kW |
| Hoist motor type | DC series motor | DC series motor |
| Rated output | 3kW | 3kW |
| Battery | ||
| Voltage | 24V | 24V |
| Capacity | 210Ah | 210Ah |
| Weight | 195kg | 195kg |
Optional Mast
| Mast type | Max. fork height | Mast lowered height | Mast extended height |
| Simplex or duplex mast (2 stage) | KLD15N/20N | KLD15N/20N | KLD15N/20N |
| 2500mm | 1734mm | 2976mm | |
| 3000mm | 1984mm | 3476mm | |
| 3500mm | 2234mm | 3976mm | |
| 4000mm | 2484mm | 5976mm | |
| Triplex mast (3 stage) | 4000mm | 1814mm | 4496mm |
| 4500mm | 1984mm | 4966mm | |
| 5000mm | 2154mm | 5476mm | |
| 5500mm | 2314mm | 5956mm | |
| 6000mm | 2484mm | 6436mm |
