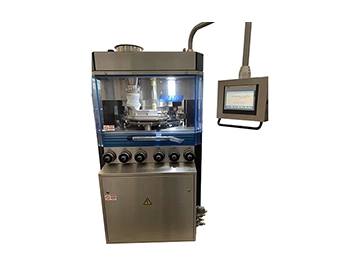

ZP4100 Rotary Tablet Press Machine
Request a Quote
Application
The rotary tablet press is a versatile machine widely used in the pharmaceutical, food, chemical, and electronic industries. It can produce a variety of tablet shapes, including round, irregular, and double side engraved tablets.
- High-speed operation with double side output.
- Provides a maximum main compression capacity of 100KN and a pre-compression capacity of 30KN.
- Features a unique structural design that combines an innovative and aesthetically pleasing appearance with simplicity and elegance.
- In accordance with GMP standards, offering a compact structure that is easy to operate, clean, and maintain.
- Equipped with a high-quality human-machine Interface (HMI) that displays tablet weight control and filling depth control.
- Equipped with an automatic central lubrication system, ensuring precise and reliable control of oil supply.
- The force feeder is designed for easy assembly and disassembly.
| Model | ||||
| Number of Station | 61 | 57 | 47 | 39 |
| Max. Main Pressure (kn) | 100 | |||
| Type of Tooling | TSM 1’ (EU 1’) D | TSM 19 (EU 19) B | TSM 19 (EU 19) BB | EU 19 BBS |
| Max. Pre-Pressure (kn) | 30 | |||
| Max. Filling Depth (mm) | 18 | |||
| Max. Diameter of Tablet (mm) | 11 | 14 | 18 | 25 |
| Rotary Speed of Turret (rpm) | 48 | |||
| Max. Capacity (tab/h) | 351360 | 320328 | 270720 | 224640 |
| Main Motor Powder (kW) | 7.5 | |||
| Height of Main Machine (mm) | 2160 | |||
| Floor Area (mm) | 1300×1100 | |||
| Weight (kg) | 3000 | |||
As a China-based rotary tablet press machine manufacturer and supplier, Jiangnan Enterprise offers a broad range of products that includes high speed blister packaging machine, automatic strip packaging machine, automatic medicine packaging production line, and more.
