Automatic Two-Sided Terminal Crimping and One-Sided Heat Shrinking Machine

Automatic Two-Sided Terminal Crimping and One-Sided Heat Shrinking Machine
Automatic Two-Sided Terminal Crimping and One-Sided Heat Shrinking Machine
Automatic Two-Sided Terminal Crimping and One-Sided Heat Shrinking Machine
Request a Quote

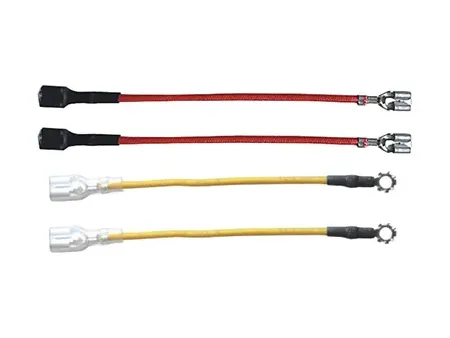

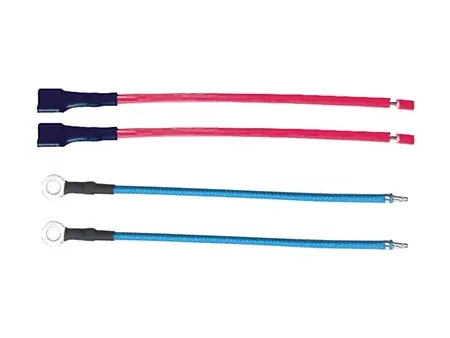

This wire processing system combines multiple wire processing functions into one efficient operation. It performs cutting, stripping, two-sided crimping, and one-sided heat shrinking, with the flexibility to handle single-end operations such stripping and crimping. Compatible with PH, XH, ZH, SCN, SM, VH, straight plug, and ring terminals, it ensures reliable performance for various terminal types. Designed for 14AWG to 20AWG wires, it accommodates materials including PVC, high-temperature cables, Teflon, and halogen-free wires.

Technical Data
General Model
Dimensions (L×W×H) 1550×725×1600mm 1550×725×1600mm
Weight Approx. 600kg Approx. 600kg
Power Supply AC220V 50Hz AC220V 50Hz
Rated Current 20A 20A
Power 5.5kW 5.5kW
Air Pressure 0.4-0.6Mpa (the air must be filtered and dried)
Space Requirement 1×2m 1×2m
Crimping Force 2T 2T
Functions Crimping Capacity 2580 wires/hr at 100mm length (depending on the wire length) 1400-1800 wires/hr at 100mm length (depending on the wire length)
Wire Processing Wire cutting, One-sided stripping, Two-sided stripping, One-sided crimping, Two-sided crimping, One-sided crimping one-sided heat shrink tube insertion, One-sided crimping and heat shrink tube insertion one-sided stripping Wire cutting, Two-sided stripping, One-sided crimping, Two-sided crimping, One-sided crimping one-sided heat shrink tube insertion, One-sided crimping and heat shrink tube insertion one-sided stripping, One-sided crimping and sleeve insertion one-sided heat shrink tube insertion, One-sided crimping and sleeve insertion one-sided crimping
Control System LCD display, single-chip microcontroller
Detection Devices Crimp test, wire shortage detection, air pressure test, paper winding inspection
Auxiliary Equipment Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank
Operation Control Wire feeding, cutting, stripping and movement are controlled via touch screen
Optional Pressure Measuring Device Used to measure terminal crimping pressure
Application Range Cutting Length 68-9999mm
Stripping Length Front: 0.1-12mm, Rear: 0.1-12mm
Wire & Cable Type Electric wire, high temperature cable, Teflon insulated cable (AWG14#-AWG20#)
Features
  • Equipped with a servo motor for high precision, accurate positioning, and fast processing speeds, ensuring consistent results across all wire types.

  • Designed to handle 14AWG to 20AWG wires, it supports a range of materials, including PVC, Teflon, and halogen-free cables, offering adaptability for various applications.

  • Fitted with encoder-based wire feeding compensation improves accuracy during stripping and feeding, delivering reliable results even with varying wire lengths.

  • Integrated error monitoring system displays real-time alerts on a touch screen, enabling quick fault detection and reducing downtime for uninterrupted production.
