Automatic Two-Sided Terminal Crimping and Heat Shrinking Machine

Automatic Two-Sided Terminal Crimping and Heat Shrinking Machine
Automatic Two-Sided Terminal Crimping and Heat Shrinking Machine
Request a Quote

Engineered for precise and efficient cable assembly, this wire processing machine integrates cutting, stripping, dual-end terminal crimping, and heat shrink tube application into a seamless process. It handles operations such as crimping both ends, inserting heat shrink tubes on one or both ends, or combining crimping with partial stripping. Compatible with 14AWG to 26AWG wires, including PVC, Teflon, and halogen-free materials, our 2-sided crimping & heat shrinking equipment provides flexibility and ease of configuration, ensuring reliable results for various wire processing applications.

Crimping Capacity
  • 1,000 to 2,000 wires per hour
Technical Data
General Model
Dimensions (L×W×H) 1950×720×1600mm
Weight 750kg
Power Supply AC220V 50Hz
Rated Current 20A
Power 6.5kW
Air Pressure 0.4-0.6Mpa (the air must be filtered and dried)
Space Requirement 1×2.2m
Crimping Force 2T
Functions Crimping Capacity 1000-2000 wires/hr (depending on the wire length)

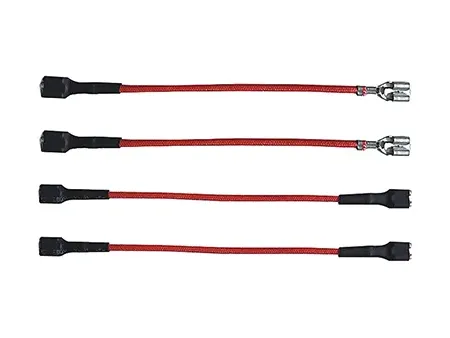

Wire Processing Wire cutting, One-sided stripping, Two-sided stripping, One-sided crimping, Two-sided crimping, One-sided crimping one-sided heat shrink tube insertion, One-sided crimping and heat shrink tube insertion one-sided stripping, Two-sided crimping two-sided heat shrink tube insertion
Control System LCD display, single-chip microcontroller
Die Change OTP crimping applicator, easy and quick die changing
Detection Devices Crimp test, wire shortage detection, air pressure test, paper winding inspection
Auxiliary Equipment Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank
Operation Control Wire feeding, cutting, stripping and movement are controlled via touch screen
Optional Pressure Measuring Device Used to measure terminal crimping pressure
Application Range Cutting Length 68-999mm (two-sided insertion), 48-999mm (one-sided insertion)
Stripping Length Front: 0.1-12mm, Rear: 0.1-12mm
Wire & Cable Type Electric wire, high temperature cable, Teflon insulated cable (AWG14#-AWG26#)
Features
  • Designed with encoder-based wire feeding compensation to ensure precise stripping and feeding for reliable results, even with varying wire lengths.

  • The integrated error monitoring system features real-time alerts displayed on an intuitive touch screen, allowing operators to quickly address issues and maintain production flow without interruptions.
