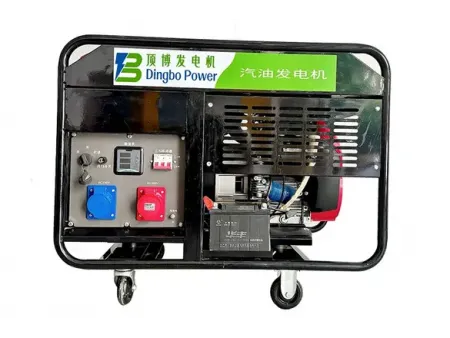

Air-Cooled Gasoline Welding Generators (2 Cylinder)

Request a Quote

Website: http://db-dieselgenerators.com/8-4-air-cooled-gasoline-welding-generators.html

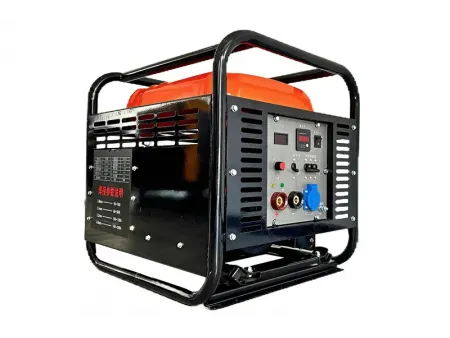

300A Welding Generator

Features

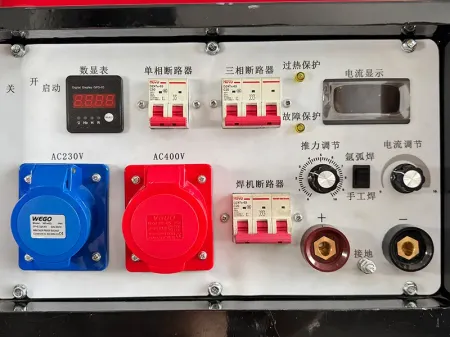

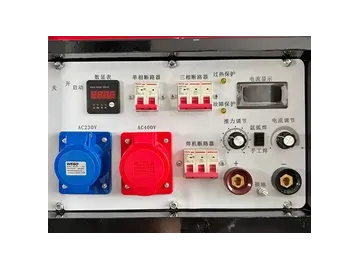

Dual AC output and welding function
The air-cooled gasoline welding generator supports both single-phase and three-phase AC outputs at the same rated power, allowing the generator to operate grinding, cutting, lighting, and other tools in addition to welding.

Stable welding performance
This generator features automatic compensation for voltage and thrust fluctuations, thus ensuring a consistent arc, excellent penetration, rapid response, low spatter, and continuous fine-tuning of the welding current.

Designed for outdoor applications
This air-cooled generator set is well-suited for utility work, municipal maintenance, chemical piping, waterworks, and gas line installation, making it suitable for demanding field operations that require both power and welding capabilities.

Specifications

Model		DB-AXQ-300A
Welder	Welding Type	Manual & arc welding
	No-Load Voltage (V)	60-70
	Welding Voltage (V)	22-28
	Welding Current (A)	40-300
	Load Continuous Rate	60%
	Auxiliary Power	AC220V & AC380V/10kW

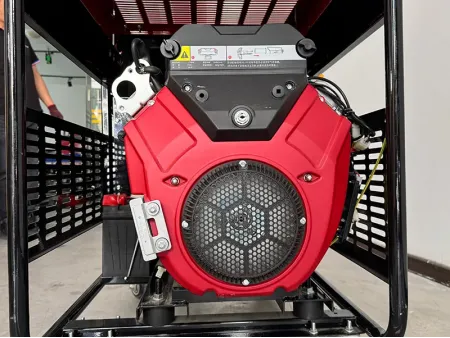

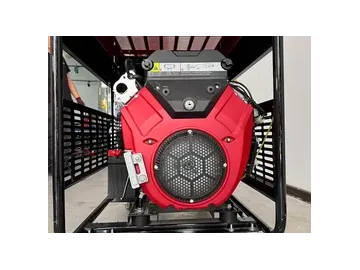

Engine	Engine Model	DH720
	Engine Type	2 cylinder, air-cooled, OHV (overhead valve)
	Bore Size×Stroke (mm)	78×70
	Displacement (cc)	720
	Starting System	Electric start
	Oil Capacity (L)	1.6
Generator	Fuel Tank Capacity (L)	30
	Noise Level (dBA/7m)	80
	Dimension (mm)	1050×615×740
	Weight (kg)	192
