Gasoline/LPG Forklift 2-4 Tonne

Gasoline/LPG Forklift 2-4 Tonne
Request a Quote
  • 19-20 km/h
  • 2410-2610 mm
  • Features
    • The steering wheel is adjustable so it can reduce drivers’ fatigue after long periods of work.
    • The seat is comfortable and spacious enough to improve driving experience.
    • High-strength mast materials, a strong buffer system and a design of smart descent and automated deceleration effectively prevent goods from hitting the ground and thus protect the goods and the ground.
    • The simple yet reliable shock absorption design ensures safety and stability.
    Applications

    Material handling in factories and workshops.

    Forklift Truck Components

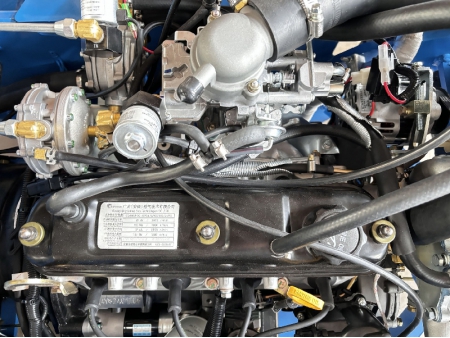

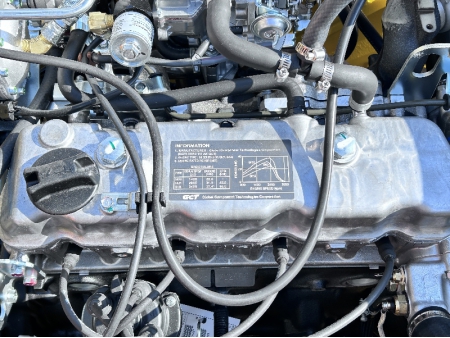

    LPG & Gasoline Dual-Fuel Engine (Optional)

    The advanced dual-fuel system allows flexible, safe, and efficient switching, with LPG providing a clean, eco-friendly, and cost-effective option that adapts well to various environments and budget requirements.

    Seat (Optional)

    Featuring an OPS system with ergonomic design and adjustable settings, this system helps reduce operator fatigue, providing comfort during extended use.

    Mast (Optional)

    Available with 2-3 stage standard masts and multi-stage full free lift masts, this offers high customization flexibility to meet diverse operational needs.

    Load-Backrest

    Equipped with a load-backrest to prevent cargo slippage, this feature enhances safety during operations.

    Control System (Optional)

    The integrated dashboard, along with an ergonomically designed steering wheel, throttle, and brake system, ensures safe, convenient, and comfortable operation.

    Overhead Guard

    Designed with driver safety in mind, also offers customizable width and height options to accommodate specific operational needs.

    Control Valve

    Thoughtfully designed for ease of use, with straightforward operation and customization options to meet different needs.

    Air Filter & Air Tank

    The air filter effectively removes impurities, enhancing engine efficiency and extending its lifespan. The air tank is made from high-strength, corrosion-resistant steel, providing excellent sealing for enhanced safety and durability.

    Technical Specifications
    Model CPCD20 CPCD25 CPCD30 CPCD35 CPCD40
    Characteristics Power Gasoline/LPG
    Capacity kg 2000 2500 3000 3500 4000
    Load Centre mm 500 500 500 500 500
    Lift Height mm 3000 3000 3000 3000 3000
    Min. Turning Radius mm 2410 2410 2410 2410 2610
    Performance Travel Speed Load km/h 19 19 20 20 20
    Lift Speed Load mm/s 500 500 480 480 480
    Dimensions Total Length With fork mm 3750 3750 3770 3770 3970
    Without fork mm 2680 2680 2700 2700 2900
    Total Width mm 1160 1160 1225 1225 1225
    Max. Height mm 4245 4245 4265 4265 4265
    Mast Height mm 2085 2085 2100 2100 2180
    Chassis Tyre Front 7.00-12-12PR 7.00-12-12PR 28x9-15-12PR 28x9-15-12PR 250-15-12PR
    Rear 6.00-9-10PR 6.00-9-10PR 6.50-10-10PR 6.50-10-10PR 6.50-10-10PR
    Wheelbase mm 1700 1700 1700 1700 1900
    Service Weight No load kg 3600 3850 4300 4600 4900
    Power Engine Model Quanchai/Xinchai Quanchai TDCI
    Rated power kW/r.p.m 36.8/2500 36.8/2500 36.8/2500 36.8/2500 36.8/2500
    Rated torque Nm/r.p.m 156/1700-1900 156/1700-1900 156/1700-1900 156/1700-1900 180-190/1800-2000
    Cylinders 4 4 4 4 4
    • Distributors Welcome

      We are looking for agents and distributors as sales partners to expand local markets.
