Polyurethane Foam Injecting Machine
Request a Quote
- Low Pressure GZ(Y)-30
- High Pressure GZ(Y)-220

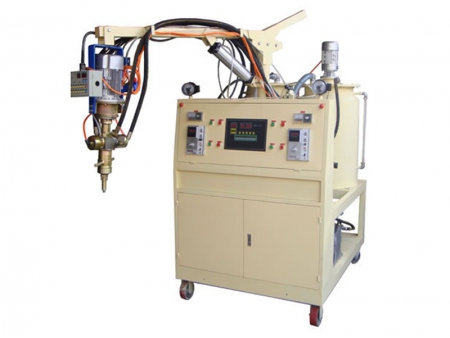

Low Pressure Polyurethane Foam Injecting Machine GZ(Y)-30
This injecting machine is mainly used to inject rigid or soft polyurethane foam continuously for various thermal insulation purposes.
Features
Being controlled by PLC, this machine offers high accuracy, simple operation and convenient maintenance. The alarming relay will give alarms when pre-setting first injection is finished.
Technical Parameters
- Main pump motor power5.5kW
- Mixing device motor power0.55kW
- Hydraulic pump motor power2.2kW
- Automatic glue filling unit motor power1.5kW×2
- Flux5-30kg/min
- Capacity of tanks for polyurethane glue180kg×2, auto filling
- PLCAutomatic heating, injecting, cleaning and blowing, supporting the storage of 99 programs
- Piston type metering pump adjusting precision0.05%
- Pressure generated8-10MPa
- Air compressor needed0.8m3 (prepared by buyer)
- Machine weightAbout 800kg
- Machine dimensionAbout 1370×1350×2250mm
High Pressure Polyurethane Foam Injecting Machine GZ(Y)-220
This injecting machine is suitable for continuous injecting rigid or soft polyurethane foam products such as sofa pillow, car seats and furniture, etc.
Features
This machine features PLC control, high accuracy, simple operation and convenient maintenance. Once pre-setting first injection is finished, the alarming relay will give alarms.
Technical Data
- Main pump motor power15kW× 2
- Mixing motor power0.55kW
- Hydraulic pump motor power2.2kW
- Flux40-400kg/min
- Injecting time0.1-99.9s
- Injecting pipe high pressure protectionPressure gauge with electric contact
- Filters for Polyol and ISO gluesDN110 self-clean filter
- Hydraulic stationTank volume 20L
- High pressure mixing headHigh precision, hydraulic control, L-type, self-clean, solvent free;
Life more than 300,000 times;
Nozzle OD: 24mm - Heating power for two tanks2kW×2
- Temperature control for tank heatingDigital temperature controller
- Auto-filling devices for two tanksSelf-absorbing pumps, motor power 1.5kW
- Capacity of tanks for polyurethane glue180kg×2
- PLCPLC supports automatic heating, injecting, cleaning and blowing; PLC can save 99 programs
- Piston type metering pump adjusting precision0.05%
- Pressure generated80-100MPa
- Swing arm2.5m long, 270° rotating angle, horizontal and vertical injection
- Dimension of main bodyAbout 1590×1200×2400mm
- Dimension of tanks720×1550×2400mm
- WeightAbout 2500kg
