Gold and Gold Alloy Bonding Wire
Application
Our gold bonding wires are used for a wide range of products packaging, such as TR, ICs and LED.
Type | Application | Feature | |
Gold Bonding Wire | JFDE1 | Packaging for TR, LED, IC (SOT/DIP/SOP/TSOP /TQFP/TSSOP/LOC/BGA etc.) | Medium and high loop type, size 200μm ~300μm, medium to high intensity |
JFDE2 | |||
JFDE3 | |||
JFBL | IC packaging (QFN/LQFP/QFP/BGA/SBGA/TQFP/TSOP/CSP/PKG etc.) | Medium and low loop type, loop height 100μm ~200μm,high strength, suitable for low loop, long span or short span | |
JFBL3 | |||
JFBL6 | |||
Gold Alloy Bonding Wire | JFCW2 | Mainly suitable for high density or small size IC packaging(QFP/BGA/SBGA/TQFP/TSOP/CSP/PKG, etc.) | low loop type, loop height 70μm ~100μm,high strength, suit for ultra-low loop, long span or short span |
JFDE, JFBL series
Model | Au purity % | Impurity is not greater than,% | ||||||||||
Ag | Cu | Fe | Pd | Mg | Si | Pb | Sb | Bi | Sum of all measurable impurities | |||
JFDE | ≥99.99 | 0.001 | 0.0005 | 0.0005 | 0.0005 | 0.0002 | 0.001 | 0.001 | 0.001 | 0.002 | 0.01 |
Note: If the customer requires analysis of the content of a specific impurity element, it can be carried out according to the customer's requirements.
JFCW Gold wiresModel | Au purity | Alloy composition,% | Impurity is not greater than,% | ||||||
Ag | Cu | Fe | Pb | Sb | Bi | Sum of all measurable impurities | |||
JFCW | ≥99.00 | 0.9-1.0 | 0.002 | 0.0005 | 0.0005 | 0.001 | 0.001 | 0.002 | 0.01 |
Note: If the customer requires analysis of the content of a specific impurity element, it can be carried out according to the customer's requirements.
SpecificationDiameter | Weight | Minimum tensile force cN | Elongation % | Elongation fluctuation range % | |||||||
mm | mil | mg/m | GW GW3 | GW2 | TS | TS6 | TS3 | AG2 | GW series | TS series AG2 | |
0.013 | 0.52 | 2.19~2.97 | 2.0 | 2.0 | 3.0 | 3.0 | 3.0 | 3.0 | 2.0~5.0 | 2.0~5.0 | 2 |
0.014 | 0.56 | 2.56~3.41 | 2.5 | 2.5 | 3.0 | 3.0 | 3.0 | 3.5 | 2.0~5.0 | 2.0~5.0 | 2 |
0.015 | 0.60 | 2.97~3.88 | 3.0 | 3.0 | 3.5 | 3.5 | 3.5 | 4.0 | 2.0~5.0 | 2.0~5.0 | 3 |
0.016 | 0.64 | 3.41~4.39 | 3.0 | 3.0 | 3.5 | 3.5 | 4.0 | 4.5 | 2.0~5.0 | 2.0~5.0 | 3 |
0.017 | 0.68 | 3.88~4.92 | 3.5 | 3.5 | 4.0 | 4.0 | 4.5 | 5.0 | 2.0~5.0 | 2.0~5.0 | 3 |
0.018 | 0.72 | 4.39~5.48 | 4.0 | 4.0 | 4.5 | 5.0 | 5.0 | 5.5 | 2.0~5.0 | 2.0~5.0 | 3 |
0.019 | 0.76 | 4.91~6.07 | 4.5 | 4.5 | 5.0 | 5.0 | 5.5 | 6.0 | 2.0~5.0 | 2.0~5.0 | 3 |
0.020 | 0.80 | 5.48~6.69 | 5.0 | 5.0 | 5.5 | 6.0 | 6.0 | 6.5 | 2.0~6.0 | 2.0~6.0 | 3 |
0.021 | 0.84 | 6.07~7.34 | 5.5 | 5.5 | 6.0 | 6.0 | 6.5 | 7.0 | 2.0~6.0 | 2.0~6.0 | 3 |
0.022 | 0.88 | 6.69~8.03 | 6.0 | 6.0 | 6.5 | 7.0 | 7.0 | 8.0 | 2.0~6.0 | 2.0~6.0 | 3 |
0.023 | 0.92 | 7.34~8.74 | 6.5 | 6.5 | 7.0 | 7.5 | 7.5 | 9.0 | 2.0~6.0 | 2.0~7.0 | 3 |
0.024 | 0.96 | 8.03~9.48 | 7.5 | 7.5 | 8.0 | 9.5 | 9.0 | 10.0 | 2.0~7.0 | 2.0~7.0 | 3 |
0.025 | 1.00 | 8.74~10.26 | 8.0 | 9.0 | 10.0 | 10.0 | 10.5 | 11.0 | 2.0~7.0 | 2.0~8.0 | 3 |
0.026 | 1.02 | 9.48~1.106 | 8.5 | 9.0 | 10.0 | 10.5 | 11.0 | 12.0 | 2.0~7.0 | 2.0~8.0 | 3 |
0.027 | 1.06 | 10.26~11.90 | 9.0 | 9.5 | 10.0 | 12.0 | 12.0 | 13.0 | 2.0~8.0 | 2.0~8.0 | 3 |
0.028 | 1.12 | 11.06~12.76 | 10.0 | 10.5 | 11.0 | 13.0 | 13.0 | 14.0 | 2.0~8.0 | 2.0~8.0 | 3 |
0.029 | 1.16 | 11.90~13.66 | 11.0 | 11.5 | 12.0 | 14.0 | 14.0 | 15.0 | 2.0~8.0 | 2.0~8.0 | 3 |
0.030 | 1.20 | 12.76~14.58 | 11.5 | 12.0 | 13.0 | 15.0 | 15.0 | 16.0 | 3.0~8.0 | 3.0~8.0 | 3 |
0.032 | 1.28 | 14.58~16.52 | 12.5 | 13.0 | 14.0 | 16.0 | 16.0 | 17.0 | 3.0~8.0 | 3.0~8.0 | 3 |
0.033 | 1.30 | 15.54~17.54 | 13.0 | 13.5 | 15.0 | 17.0 | 17.0 | 18.0 | 3.0~9.0 | 3.0~9.0 | 3 |
0.034 | 1.34 | 16.52~18.59 | 14.0 | 14.5 | 15.0 | 17.5 | 18.0 | 18.5 | 3.0~9.0 | 3.0~9.0 | 3 |
0.035 | 1.40 | 17.54~19.67 | 15.0 | 16.0 | 17.0 | 19.0 | 19.0 | 20.0 | 3.0~9.0 | 3.0~10.0 | 3 |
0.038 | 1.52 | 20.77~23.08 | 18.0 | 18.5 | 19.0 | 21.0 | 21.0 | 23.0 | 3.0~10.0 | 3.0~10.0 | 4 |
0.040 | 1.60 | 23.08~25.51 | 20.0 | 21.0 | 23.0 | 24.0 | 24.0 | 26.0 | 3.0~10.0 | 3.0~10.0 | 4 |
0.043 | 1.70 | 26.77~29.38 | 22.0 | 23.0 | 28.0 | 30.0 | 30.0 | 32.0 | 3.0~10.0 | 3.0~10.0 | 4 |
0.044 | 1.76 | 28.06~30.73 | 24.0 | 25.0 | 30.0 | 32.0 | 33.0 | 35.0 | 3.0~10.0 | 3.0~10.0 | 4 |
0.045 | 1.80 | 29.38~32.11 | 25.0 | 28.0 | 31.0 | 34.0 | 35.0 | 38.0 | 3.0~10.0 | 3.0~10.0 | 4 |
0.050 | 2.00 | 34.96~41.03 | 32.0 | 34.0 | 35.0 | 38.0 | 38.0 | 41.0 | 3.0~12.0 | 3.0~12.0 | 4 |
0.060 | 2.36 | 49.30~60.23 | 45.0 | 50.0 | 52.0 | 50.0 | 56.0 | 60.0 | 7.0~14.0 | 7.0~14.0 | 4 |
0.070 | 2.76 | 68.12~80.86 | 55.0 | 60.0 | 68.0 | 70.0 | 75.0 | 80.0 | 7.0~14.0 | 7.0~14.0 | 4 |
Note: In the calculation formula of weight: ((пD2)/4) ×ρ×L
п—Pi, value 3.14159;
D—the diameter of the wire sample, mm;
ρ—Density of the sample, value 19.32g/cm3;
L—the length of the sample;
1. The calculated value is rounded to the nearest five decimal places.
2. After the agreement between the supplier and the buyer, other standard gold wire can be provided.
Diameter | Length | Spool | Diameter | Length | Spool | ||
mm | mil | m | Type | mm | mil | m | Type |
0.013 | 0.52 | 500 | 2"-Al-DF | 0.014 | 0.56 | 500 | 2"-Al-DF |
1000 | 2"-Al-DF | 1000 | 2"-Al-DF | ||||
2000 | 2"-Al-DF-W | 2000 | 2"-Al-DF-W | ||||
3000 | 2"-Al-DF-W | 3000 | 2"-Al-DF-W | ||||
0.015 | 0.60 | 500 | 2"-Al-DF | 0.016 | 0.64 | 500 | 2"-Al-DF |
1000 | 2"-Al-DF | 1000 | 2"-Al-DF | ||||
2000 | 2"-Al-DF-W | 2000 | 2"-Al-DF-W | ||||
3000 | 2"-Al-DF-W | 3000 | 2"-Al-DF-W | ||||
0.017 | 0.68 | 500 | 2"-Al-DF | 0.018 | 0.72 | 500 | 2"-Al-DF |
1000 | 2"-Al-DF | 1000 | 2"-Al-DF | ||||
2000 | 2"-Al-DF-W | 2000 | 2"-Al-DF-W | ||||
3000 | 2"-Al-DF-W | 3000 | 2"-Al-DF-W | ||||
0.019 | 0.76 | 500 | 2"-Al-DF | 0.020 | 0.80 | 500 | 2"-Al-DF |
1000 | 2"-Al-DF | 1000 | 2"-Al-DF,2"-Al-DF-W | ||||
2000 | 2"-Al-DF-W | 2000 | 2"-Al-DF-W | ||||
3000 | 2"-Al-DF-W | 3000 | 2"-Al-DF-W | ||||
0.021 | 0.84 | 500 | 2"-Al-DF | 0.022 | 0.88 | 500 | 2"-Al-DF |
1000 | 2"-Al-DF | 1000 | 2"-Al-DF | ||||
2000 | 2"-Al-DF-W | 2000 | 2"-Al-DF-W | ||||
3000 | 2"-Al-DF-W | 3000 | 2"-Al-DF-W | ||||
0.023 | 0.92 | 500 | 2"-Al-DF,2"-Al-DF-W | 0.024 | 0.96 | 500 | 2"-Al-DF |
1000 | 2"-Al-DF,2"-Al-DF-W | 1000 | 2"-Al-DF | ||||
2000 | 2"-Al-DF-W | 2000 | 2"-Al-DF-W | ||||
3000 | 2"-Al-DF-W | 3000 | 2"-Al-DF-W | ||||
0.025 | 1.00 | 500 | 2"-Al-DF,2"-Al-DF-W | 0.026 | 1.02 | 500 | 2"-Al-DF,2"-Al-DF-W |
1000 | 2"-Al-DF,2"-Al-DF-W | 1000 | 2"-Al-DF,2"-Al-DF-W | ||||
2000 | 2"-Al-DF-W | 2000 | 2"-Al-DF-W | ||||
3000 | 2"-Al-DF-W | 3000 | 2"-Al-DF-W | ||||
0.027 | 1.06 | 500 | 2"-Al-DF,2"-Al-DF-W | 0.028 | 1.12 | 500 | 2"-Al-DF |
1000 | 2"-Al-DF,2"-Al-DF-W | 1000 | 2"-Al-DF | ||||
0.029 | 1.16 | 500 | 2"-Al-DF | 0.030 | 1.20 | 500 | 2"-Al-DF |
1000 | 2"-Al-DF | 1000 | 2"-Al-DF | ||||
0.032 | 1.28 | 500 | 2"-Al-DF | 0.033 | 1.30 | 500 | 2"-Al-DF |
1000 | 2"-Al-DF | 1000 | 2"-Al-DF | ||||
0.034 | 1.34 | 500 | 2"-Al-DF | 0.035 | 1.40 | 500 | 2"-Al-DF |
1000 | 2"-Al-DF | 1000 | 2"-Al-DF | ||||
0.038 | 1.52 | 500 | 2"-Al-DF,2"-Al-DF-W | 0.040 | 1.60 | 500 | 2"-Al-DF |
1000 | 2"-Al-DF,2"-Al-DF-W | 1000 | 2"-Al-DF | ||||
0.043 | 1.70 | 500 | 2"-Al-DF,2"-Al-DF-W | 0.044 | 1.76 | 500 | 2"-Al-DF,2"-Al-DF-W |
1000 | 2"-Al-DF,2"-Al-DF-W | 1000 | 2"-Al-DF,2"-Al-DF-W | ||||
0.045 | 1.80 | 500 | 2"-Al-DF | 0.050 | 2.00 | 300 | 2"-Al-DF |
1000 | 2"-Al-DF | 500 | 2"-Al-DF,2"-Al-DF- | ||||
0.060 | 2.36 | 300 | 2"-Al-DF | 0.070 | 2.76 | 300 | 2"-Al-DF |
500 | 2"-Al-DF,2"-Al-DF-W | 500 | 2"-Al-DF,2"-Al-DF-W |

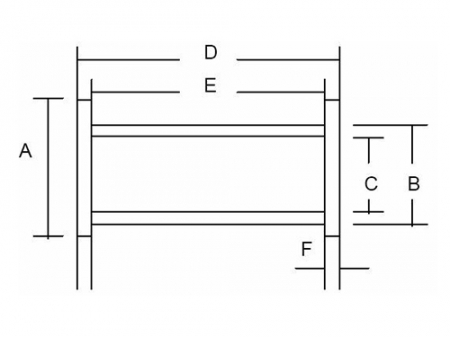

Type | Material | A Spool diameter | B Tube diameter | C Inner diameter | D Tube width | E Spool width | F Wall thickness |
2"-Al-DF 2"Low flange aluminum spool (Low spool for short) | Aluminum | 58.5±0.5 | 50.3-0.1 | 48.8 0.2 | 28.0±0.5 | 26.5±0.5 | 0.70~0.90 |
2"-Al-DF-W 2" Height flange aluminum spool (Low spool for short) | Aluminum | 58.5±0.5 | 50.3-0.1 | 48.8 0.2 | 47.3±0.5 | 45.5±0.5 | 0.70~0.90 |
