Batter Mixing System for Chiffon Cake Manufacturer

Batter Mixing System for Chiffon Cake

Request a Quote

View All: http://zlinetech.com/9-zldf-jq-500-batter-mixing-system.html

Cake batter aeration system plays a vital role in chiffon cakes production which require to mix the egg white and yolk separately to keep the typical texture. This system is able to achieve mixing, storing, chilling and transmitting 100% automatically. Different size and shape cakes are able to produced when this system is assembled with cake depositor, oven, forming tools, fillers and cutters.

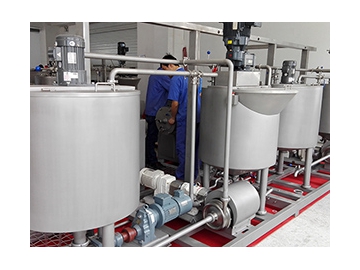

Aeration System

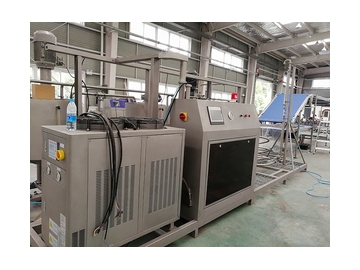

Chiller

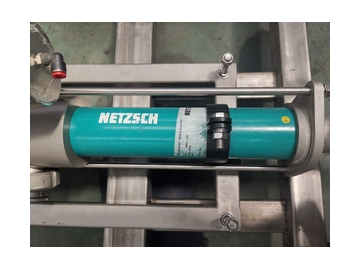

Rotor Pump

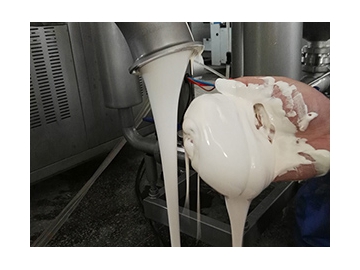

Batter Discharge
Batter

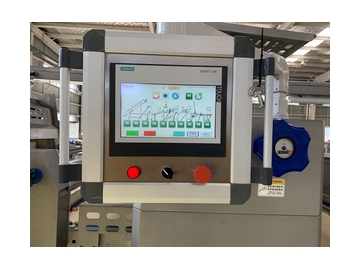

Touch Screen

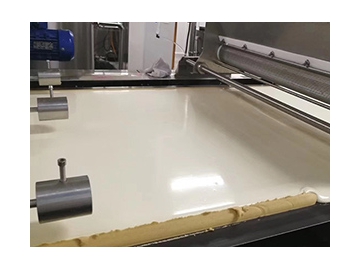

Cake Spreading Unit

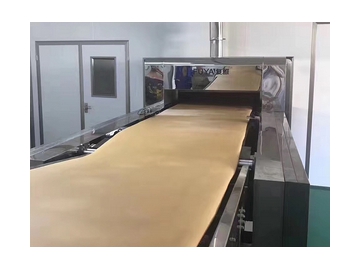

Tunnel Oven

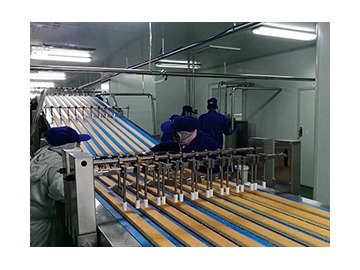

Cutter

Work flow

Egg white mixing tank – Rotor pump – Buffering tank – Screw pump - Yolk mixing tank - Rotor pump – Buffering tank - Screw pump - Aeration head – Static mixing machine – Cake depositor – Tunnel oven

Parameters

Industrial output	200-600kg/h
Power	35KW
Voltage	380V. Please offer factory’s voltage request .
Line size	L 4930mm* W 3360mm* H 2900mm
Machine weight	3700kg

Features

With PLC, touch screen and CIP pump, easy to operate and clean
High configuration enables the machine with stable work performance.
Pretty precision aeration head with outstanding mixing performance.
SUS304 makes this system more durable
Accessible turnkey solution from mixing to package.
