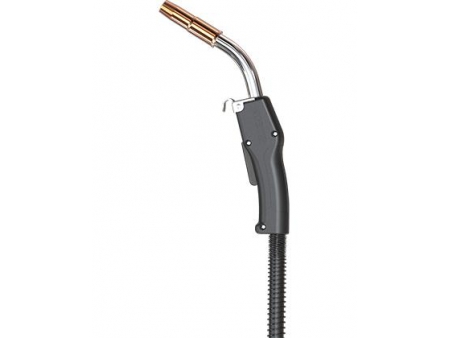

NT4B Heavy Duty Nozzle MIG/MAG Welding Gun
NT4B Heavy Duty Nozzle MIG/MAG Welding Gun
Model | NT4B | |
Rated Current | CO2 | 400A |
Mixed Gas | 350A | |
Duty Cycle | 60% | |
Diameter of Applicable Welding Wire | 0.030-5/64 inch (0.8-2.0mm) | |
Model
Description | Part No. | ||
10ft | 12ft | 15ft | |
Welding Torch Coupled with Euro Fitting | NT4B-10E | NT4B-12E | NT4B-15E |
Welding Torch Coupled with Tweco Fitting | NT4B-10T | NT4B-12T | NT4B-15T |
Welding Torch Coupled with Lincoln Fitting | NT4B-10L | NT4B-12L | NT4B-15L |
Nozzle, Contact Tip and Liner
No. | Part No. | Description |
A | 24A50 | Adjustable Nozzle |
24A62* | ||
24A75 | ||
24AH50 | Heavy Duty Nozzle | |
24AH62 | ||
24AH75 | ||
B | 23-50 | Self Insulated Nozzle |
23-62 | ||
23-75 | ||
C | 24CT50S | Fixed Coarse Thread Nozzle |
24CT62S | ||
24CT75S | ||
D | 14-35 | Contact Tip 0.035 inch/0.9mm Ecu |
14-45 | Contact Tip 0.045 inch/1.2mm Ecu | |
14-52 | Contact Tip 0.052 inch/1.3mm Ecu | |
14-116 | Contact Tip 1/16 inch/1.6mm Ecu | |
14H-35 | Contact Tip 0.035 inch/ 0.9mm Ecu HD | |
14H-45* | Contact Tip 0.045 inch/ 1.2mm Ecu HD | |
14H-52 | Contact Tip 0.052 inch/ 1.3mm Ecu HD | |
14H-116 | Contact Tip 1/16 inch/1.6mm Ecu HD | |
14H-564 | Contact Tip 5/64 inch/2.0mm Ecu HD | |
E | 44-3545-15 | Steel Liner 0.035-0.045 inch/ 0.9-1.2mm 15ft |
44-116-15* | Steel Liner 1/16 inch /1.6mm×15ft | |
44-564-15 | Steel Liner 5/64 inch /2.0mm×15ft | |
44T-3545-15 | Teflon Liner 0.035-0.045 inch/ 0.9-1.2mm × 15ft | |
44T-116-15 | Teflon Liner 1/16 inch /1.6mm×15ft |
Component
No. | Part No. | Description |
1 | 34A* | Adjustable Nozzle Insulator |
2 | 34CT | Insulator Coarse Thread Nozzle |
3 | 54A | Gas Diffuser |
4 | 64A45-J* | Jacketed Conductor Tube 45° |
64A60-J | Jacketed Conductor Tube 60° | |
5 | 104 | Cable Connector Black Assembly |
6 | 64N | Gas Nipple |
7 | 84HD-R | Handle with Screws, Red |
8 | 154HD | Hanger Hook |
9 | 92 | Trigger Switch |
10 | 134-14 | Cable Hose Clamp |
11 | 144-6S | Front Spring Cable Support |
12 | HDL4010B | Cable Assembly 10ft |
HDL4012B | Cable Assembly 12ft | |
HDL4015B | Cable Assembly 15ft | |
13 | R185-S | Back Spring Cable Support |
14 | R185-H | Gun Plug Housing with Screws |
|
