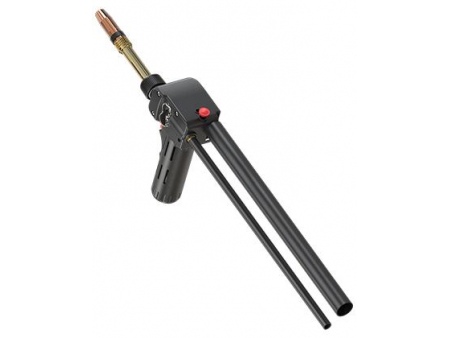

Push Pull MAG Gun
Push Pull MAG Gun
Component
No. | Part No. | Description |
1 | EJ0003 | Trigger Switch |
2 | LTH2101 | Torch Handle |
3 | LTH2111 | Cable Clamp |
4 | LTL2060 | Cable Assenmbly 6m |
5 | SS5201 | Back Spring Cable Support |
6 | SH5201 | Back Handle |
7 | MV0010 | 10 Pin Plug |
8 | EP3001 | Torch Plug Nut |
9 | LTU2001 | Euro Torch Plug |
10 | LTR2210-6 | Steel Liner 0.8-1.0mm×6mm |
LTR3212-6 | Steel Liner 1.0-1.2mm×6mm | |
LTR2310-6 | Teflon Liner 0.8-1.0mm×6mm | |
LTR3312-6 | Teflon Liner 1.0-1.2mm×6mm | |
11 | EU1011 | Nut M10×1 |
12 | LTY2001 | Press Arm Plate |
13 | LGX2015 | Bearing |
14 | LGX2016* | Push Roll 0.030/0.035 inch (0.8/0.9mm) |
LGX2017 | Push Roll 0.047(1.2mm) | |
15 | LTX2015 | Wire Reel Clamp |
16 | LGX2012 | Press Arm Spring |
17 | LGX2011 | Press Arm Bolt |
18 | LGX2001 | Gearbox Assembly |
19 | LGX2018 | Woodruff Key |
20 | LGX2019* | Wire Feed Roller 0.030/0.035 inch (0.8/0.9mm) |
LGX2020 | Wire Feed Roller 0.047 inch (1.2mm) | |
21 | LZ3601 | Motor |
22 | Q8210* | Potentiometer 10KQ |
Q8205 | Potentiometer 5KQ | |
Q8201 | Potentiometer 1KQ | |
23 | LTZ2012 | Potentiometer Housing |
24 | LTZ2013 | WFS Control Knob |
25 | LTH2112 | Handle Lock Nut |
26 | LGH2011 | Transparent Cover, Drive Roll |
27 | LGF2111 | Nut |
28 | LTX2013 | Gas Connector |
29 | LTX2012 | Conductive Contact |
30 | LTX2011 | Inner Core of Conductive Contact |
31 | LTR21134* | Liner Used for 180° Torch Neck |
LTR21142 | Liner Used for 45° Torch Neck | |
32 | LTF2111 | Straight Torch Neck |
LTF2112 | Curved Torch Neck | |
33 | ED2001 | Diffuser |
34 | EC2001 | Contact Tip Socket |
35 | EB2208 | Contact Tip 0.8mm |
EB2210* | Contact Tip 1.0mm | |
EB2212 | Contact Tip 1.2mm | |
36 | EA22125 | Nozzle 12.5mm |
|
