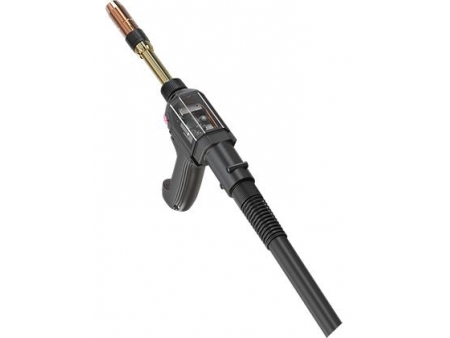

PG 4000, MIG/MAG Welding Gun

Request a Quote

View All: http://weldingtoolsmaker.com/2019/pg4000.html

Technical Data

Cooling Method: Air-Cooled
Rating: C02: 400A
Rating: Mixed Gas: 350A
Duty Cycle: 40%
Wire Size: 0.8-1.2

Order Part No.

Components

No.	Part Number	Description
1	PWF51180	Swan Neck AW5000/AW4000 0°
	PEF1545	Swan Neck AW5000/AW4000 45°
2	FSX5212	Fixing Sleeve
3	FSX5211	Insulation Rings
4	PWF5111	Straight Conductor Tube 0°
	PWF5112	Goose Conductor Tube 45°
5		Drive Unit,Air Cooleds
6	PWH0103	Cover
7		Neck Adaptor,Air Cooleds
8	PWZ5011	Bracket
9	Q230416G	Screw M4X6
10	Q3106	Nut M6
11	PWZ5012	Drive Roll 0.8-1.2mm
12	Q230525G	Screw M5X25
13	PWZ5015	Tension Arm
14	Q270312G	Screw M3X12
15	PWZ5020	Wire Inlet Guide,Back
16	DL3003	Screw M15X1.25
17	PWZ5013	Insulation Ring,Motor
18	PWZ5017	Press Arm
19	PWZ5016	Headless Screw M4X25.5
20	PWZ5014	Insulation Washer,Motor
21	LZ3001-42V	Motor And Gear Box(42V)
22	LZ3001	Motor And Gear Box(24V)
	PWZ5021	Push Roll 0.8-1.2mm
23	PWZ5023	Base Push Roll
24	Q440212	Spring Pin2X12
25	PWZ5020	Shaft,Push Roll
26	EJ0003	Tirgger Switch
27	Q8322	Potentiometer 22KΩ
	Q8310*	Potentiometer 10KΩ
28	PWH0104	Potentiometer Knob
29	PWH0100	Handle
30		Cable Assembly 8m
31	PWH0200	Back Handle
32	EP3001	Gun Plug Nut
33	PWU5001	Euro Gun Plug Without Control
34	EU1011	Nut M10x1
35	FV0009	9 Pin Connector,Fronius
36	MV0010	10 Pin Connector
37	3012C-200	Liner,Use Swan Neck 1

* Denotes Standard Build
