PW5000, MIG/MAG Welding Gun Manufacturer

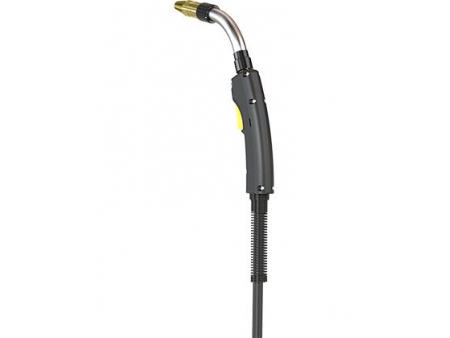

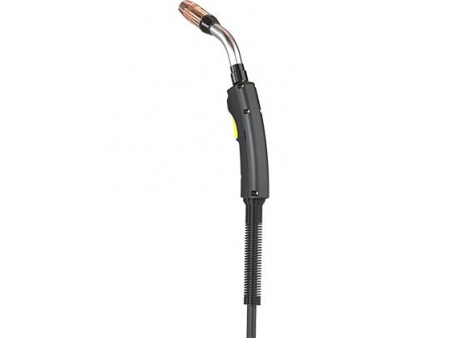

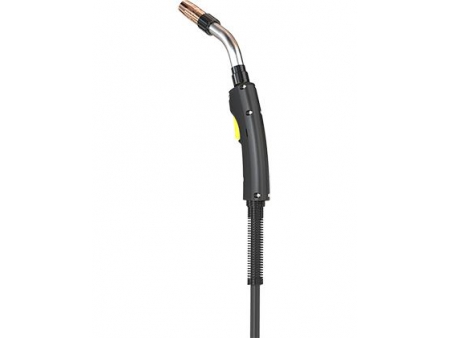

PW5000, MIG/MAG Welding Gun

Request a Quote

View All: http://weldingtoolsmaker.com/2019/pw5000.html

Technical Data

Cooling Method: Water-Cooled
Rating: C02: 500A
Rating: Mixed Gas: 400A
Duty Cycle: 100%
Wire Size: 1.0-1.6

Order Part No.

Components

No.	Part Number	Description
1	PWF51180	Swan Neck AW5000/AW4000 0°
	PEF1545	Swan Neck AW5000/AW4000 45°
2	FSX5212	Fixing Sleeve
3	FSX5211	Insulation Rings
4	PWF5111	Straight Conductor Tube 0°
	PWF5112	Goose Conductor Tube 45°
5	PWZ5000	Drive Unit,Water Cooleds
6	PWH0103	Cover
7	Q516020	O-ring 16X2
8	Q508020	O-ring 8X2
9	PWU5102	Pin,Head Tube
10	PWU5101	Neck Adaptor,Water Cooled
11	Q3106	Nut M6
12	PWZ5011	Bracket
13	Q230416G	Screw M4X6
14	PWZ5012	Drive Roll 0.8-1.2mm
15	Q230525G	Screw M5X25
16	PWZ5015	Tension Arm
17	Q270312G	Screw M3X12
18	PWZ5020	Wire Inlet Guide,Back
19	DL3003	Nut M12X1.25
20	PWZ5013	Insulation Ring,Motor
21	PWZ5017	Press Arm
22	PWZ5016	Headless Screw M4X25.5
23	PWZ5014	Insulation Washer,Motor
24	LZ3001-42V	Motor And Gear Box(42V)
	LZ3001	Motor And Gear Box(24V)
25	PWZ5021	Push Roll 0.8-1.2mm
26	PWZ5023	Base Push Roll
27	Q440212	Spring Pin2X12
28	PWZ5020	Shaft,Push Roll
29	JE0003	Tirgger Switch
30	Q8322*	Potentiometer 22KΩ
	Q8310*	Potentiometer 10KΩ
31	PWH0104	Potentiometer Knob
32	PWH0100	Handle
33	PWL5080	Cable Assembly 8m
34	PWH0200	Back Handle
35	EP3001	Gun Plug Nut
36	PWU5001	Euro Gun Plug Without Control
37	EU1011	Nut M10x1
38	FV0009	9 Pin Connector,Fronius
39	MV0010	10 Pin Connector
40	3012C-200	Liner,Use Swan Neck 1

* Denotes Standard Build
