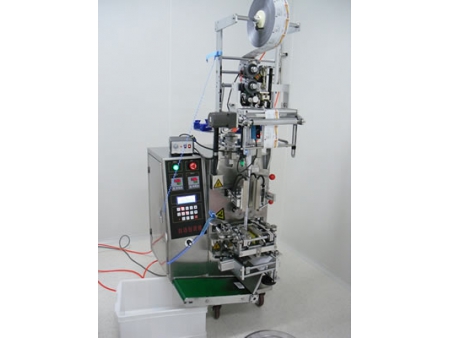

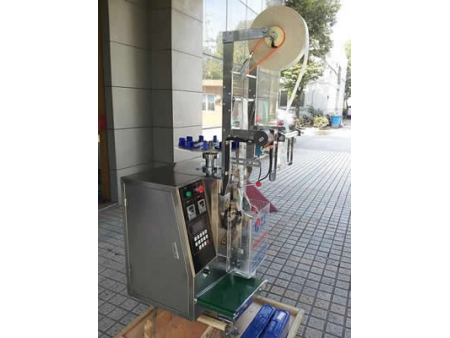

Non Food Items Packaging Machine
(0.5-200g)

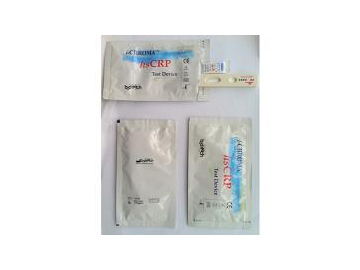

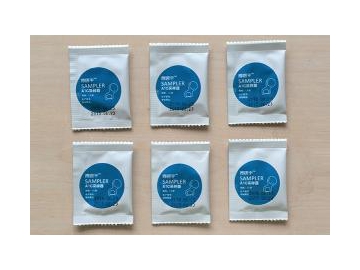

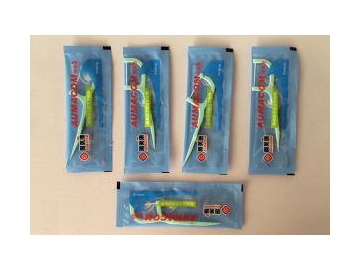

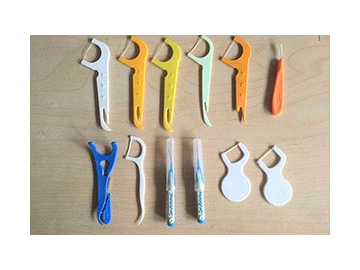

Packing Sample Pictures
| Model No. | DXDYQ-240 |
| Packing Speed | 45-100bag/min |
| Bag Size | LL30-170 W30-120mm |
| Total Power | 1.64W |
| Voltage | 380V or 220V or made accordingly |
| Machine weight | 230kg |
| Machine Size | 695*770*1580mm |
| Packing material | All kinds of composite materials or Paper-plastic membrane |
Feature:
1. Bag-making system adopts step motor with high precision (error is less than 1mm).
2. Controller is displayed in Chinese/English, can see the working conditions directly, easy to adjust bag length, counting and alerting when no paper.
3. With intelligent photoelectric controller system. Good visibility with side-open protective platens, operate safely.
4. Feeding system adopt rotate twelve working position with 20mm stainless steel, human feeding, auto open-close type feeding, humanity design, easy to feed.
5. This non food items packaging machine is suitable for the packing of rapid test kits and toothpick products, bag can be 3-side or 4-side sealed according to customer needs, according to customer feedback, the speed is 72bag/min with one person to operate. The speed of this machine is 55-100 bag/min.
6. Unique function of positioning stop, make sure the heat sealer and cutter in open position when stop in any state. Avoid the packaging materials and heat seal parts from scalding.
