Automatic Inline Labeling Machine (for Flat Surfaces)

Request a Quote

Website: http://packmachinery-en.com/automatic-inline-labeling-machine-flat-surfaces-6-4.html

Leave a Message

ALB-212

• ModelALB-212
• Label Height / WidthA: 10-110mm, C: 10-170mm
• Label Length10-250mm
• Product Diameter / Thickness15-160mm
• Labeling Speed12-35m/min
• Label Roll I.D. / O.D.76mm / Max. 360 mm
• Machine DimensionsL1450×W700×H1550mm

---

Leave a Message

ALB-213

• ModelALB-213
• Label Height / WidthA: 10-110mm, C: 10-170mm
• Label Length10-250mm
• Product Diameter / Thickness15-160mm
• Labeling Speed12-35m/min
• Label Roll I.D. / O.D.76mm / Max. 360 mm
• Machine DimensionsL1450×W700×H1550mm

Features

• The machine frame is made of 304 stainless steel.
• PLC LCD touchscreen control panel.
• Servo-driven labeling head.
• Machine can be placed alongside production lines.
• Supports automatic labeling on products in motion.
• Conveyor speed synchronization can be achieved by installing a speed encoder on the client’s conveyor roller or by manual speed input.

Details

Applications

ALB-212
The automatic inline labeling machine is designed for flat-surface labeling of products on production lines.

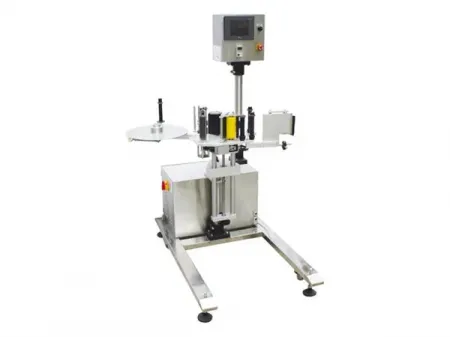

ALB-213
The automatic inline labeling machine is designed for side flat-surface labeling of products on production lines.
