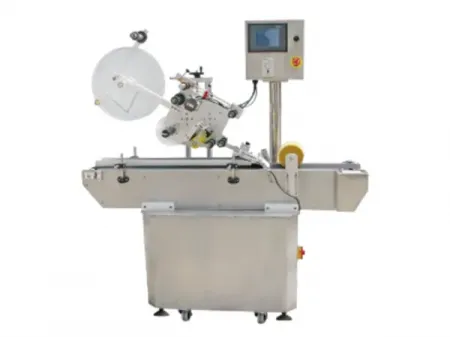

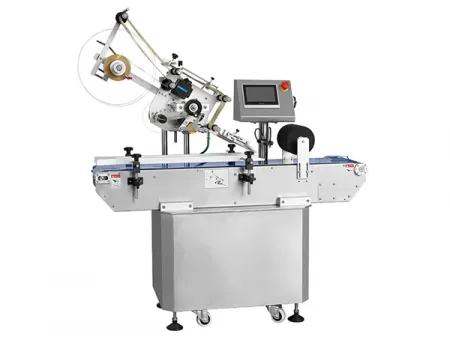

Automatic Flat Surface Labeling Machine
Request a Quote
Applications
Suitable for single flat-surface labeling on items such as cartons, bottle caps, tea bags, coffee bags, screen panels, CD cases, square bottles, binders, phone cards, paper, and bread.
Features
- The machine frame is made of 304 stainless steel
- PLC LCD touchscreen control
- Labeling accuracy within ±1 mm
- Labeling head controlled by servo-driven motor, automatically synchronizing with the conveyor
Options
- Coding printer
- Transparent label sensor
- Conveyor width based on client requirements
Specifications
| Model | ALB-210 |
| Label Height / Width | A: 10-110mm; C: 10-170mm |
| Label Length | 10-250mm |
| Product Diameter / Thickness | 15-160mm |
| Labeling Speed | 12-35m/min |
| Label Roll I.D. / O.D. | 76mm / Max. 360 mm |
| Machine Dimensions | L1450×W700×H1550mm |
