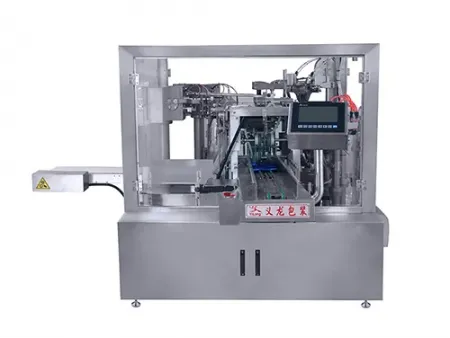

Automatic Pouch Fill-Seal System, YL-8SZ

Automatic Pouch Fill-Seal System, YL-8SZ
Automatic Pouch Fill-Seal System, YL-8SZ
Automatic Pouch Fill-Seal System, YL-8SZ
Request a Quote

210mm Premade Pouch Packaging

This rotary premade pouch packing machine integrates seamlessly with various weighing and dosing systems to handle both single and multi-material packaging requirements. To meet specific production needs, customers can customize the packaging machine with advanced features such as emergency stop on door opening, automatic card feeding, and abnormal product rejection. The entire process is fully automated, requiring no manual intervention. This effectively enhances production efficiency, significantly reduces labor and management overhead, and lowers overall operational costs.

Leave a Message

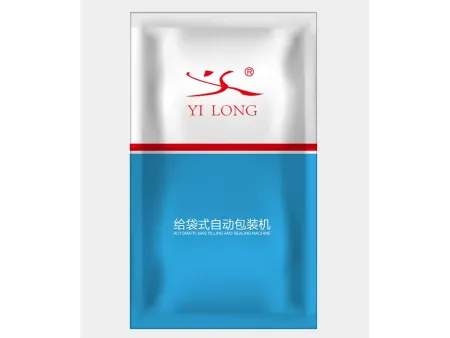

Pouch Style
  • Flat Bag
  • Stand-Up Bag
  • Zipper Bag
  • Back Seal Bag
  • Flat Bottom Bag
Working Process
  • Bag feeding (giving bag)
  • Zipper opening & date coding (optional)
  • Pouch opening (top & bottom opening)
  • Product filling
  • Pouch cleaning & second filling (optional)
  • First heat sealing
  • Second heat sealing & cooling/forming
  • Discharge / finished product output
Specifications
Capacity(pouches/min) 30-60
Pouch size Length:100-300mm
Width:100-210mm
Packing weight Max. weight 1kg
Sealing method Heat seal
Power consumption 3.2kW
Power supply 3-phase 380V 50Hz
Compressed air 6-8kgf/cm² 0.8m³/min
Machine weight 1630kg
Pouch style Flat Bag, Stand-up Bag, Zipper Bag, Back Seal Bag, Flat Bottom Bag
Machine dimensions Length:2660mm
Width:1640mm
Height:1500mm
Features
  • Premium Materials & Hygiene Standards
    Constructed from stainless steel, with all product contact parts made of 304/316L stainless steel or other food-grade materials, the automatic pouch filler is designed to meet high hygienic standards and deliver corrosion resistance and a long service life.
  • User-Friendly Operation & Integration
    Designed with PLC touch screen HMI for easy installation and simple operations. Can be integrated with user’s MES system.
  • Waste Prevention System
    The packaging system synchronizes with weighing and dosing system to avoid material waste. No-Filling-No-Sealing function prevents pouches waste.
  • Superior Seal Quality
    A specially designed sealing shaping station ensures the seals are flat and wrinkle-free. This keeps the pouch graphics intact, ensures high seal integrity, and results in an extremely low failure rate, leading to significant material savings.
  • Easy Maintenance and Convenient Inspection
    The premade pouch packaging machine primarily utilizes mechanical transmission and oil-impregnated bearings, which reduce the number of lubrication points and simplify overall maintenance.
  • Minimized Material Loss
    Wrinkle-free sealing preserves pouch graphics, ensures excellent seal quality, and minimizes the failure rate, thereby reducing packaging material loss.
